NU 1018 ML
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | NU 1018 ML |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| Seal Type | Open |
| Inner Ring Type | With Inner Ring |
| For Load Direction | Combined |
| Construction | Single Row |
Dimensions |
|
| Bore Dia | 90 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 140 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width | 24 mm |
| Width Tolerance | -0.20mm to 0 |
| Shoulder Dia Of Outer Ring | 122.1 mm |
| Permissible Axial Displacement(max.) | 3.5 mm |
| Raceway Diameter Of Inner Ring | 103 mm |
| Chamfer Dimension r1,2(min.) | 1.5 mm |
| Chamfer Dimension r3,4(min.) | 1.1 mm |
Material |
|
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Brass cage, inner or outer ring centred |
Performance |
|
| Dynamic Radial Load | 20925 lbf |
| Static Radial Load | 23400 lbf |
| Max Speed (X1000 rpm) | 8 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Grease, Oil |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.37 kg |

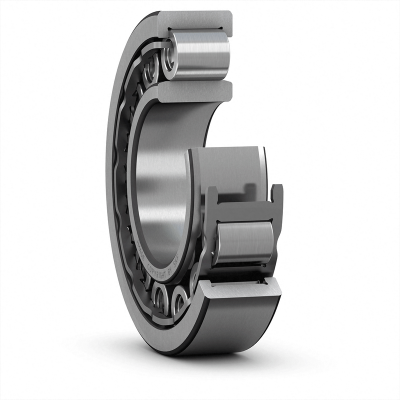

Design Features of NU 1018 ML Bearing
NU 1018 ML Bearing features a single row of cylindrical rollers that offer high radial load capacity and low friction for efficient performance. NU 1018 ML outer dia is 140 mm. Its bore dia is 90 mm. The inclusion of an inner ring ensures precise alignment, providing stability and smooth rotation under varying load conditions, making it suitable for applications requiring robust and reliable support.
What Benefits Can NU 1018 ML Bearing Provide?
- High Load Capacity: The design supports high radial loads, making it ideal for heavy-duty applications.
- Low Friction: Reduced friction enhances efficiency and extends the lifespan of the bearing.
- Compact Design: The single row configuration allows for a more compact bearing, saving space in machinery.
- Improved Stability: The inner ring ensures precise alignment, providing smooth and stable operation.
- Durability: The bearing is built for long-lasting performance under demanding conditions.
- Versatility: Suitable for a wide range of applications, from industrial machinery to automotive systems.
What Can NU 1018 ML Bearing Be Used for?
- Industrial Machinery: Used in heavy-duty machines like pumps, compressors, and gearboxes to handle high radial loads.
- Automotive Industry: Found in engines, transmissions, and wheel hubs, providing reliable support under varying load conditions.
- Single Row Equipment: Used in machinery such as cranes and excavators, which require bearings that can handle high loads and rough conditions.
- Mining Equipment: Essential for equipment like conveyors and crushers, where high load-bearing capacity is needed.
- Electric Motors: Provides stable support for the rotor, reducing friction and improving efficiency.
- Agricultural Equipment: Used in machines like tractors and harvesters to ensure smooth operation under tough conditions.
