Idler Sprockets
211 Products
What Is an Idler Sprocket?

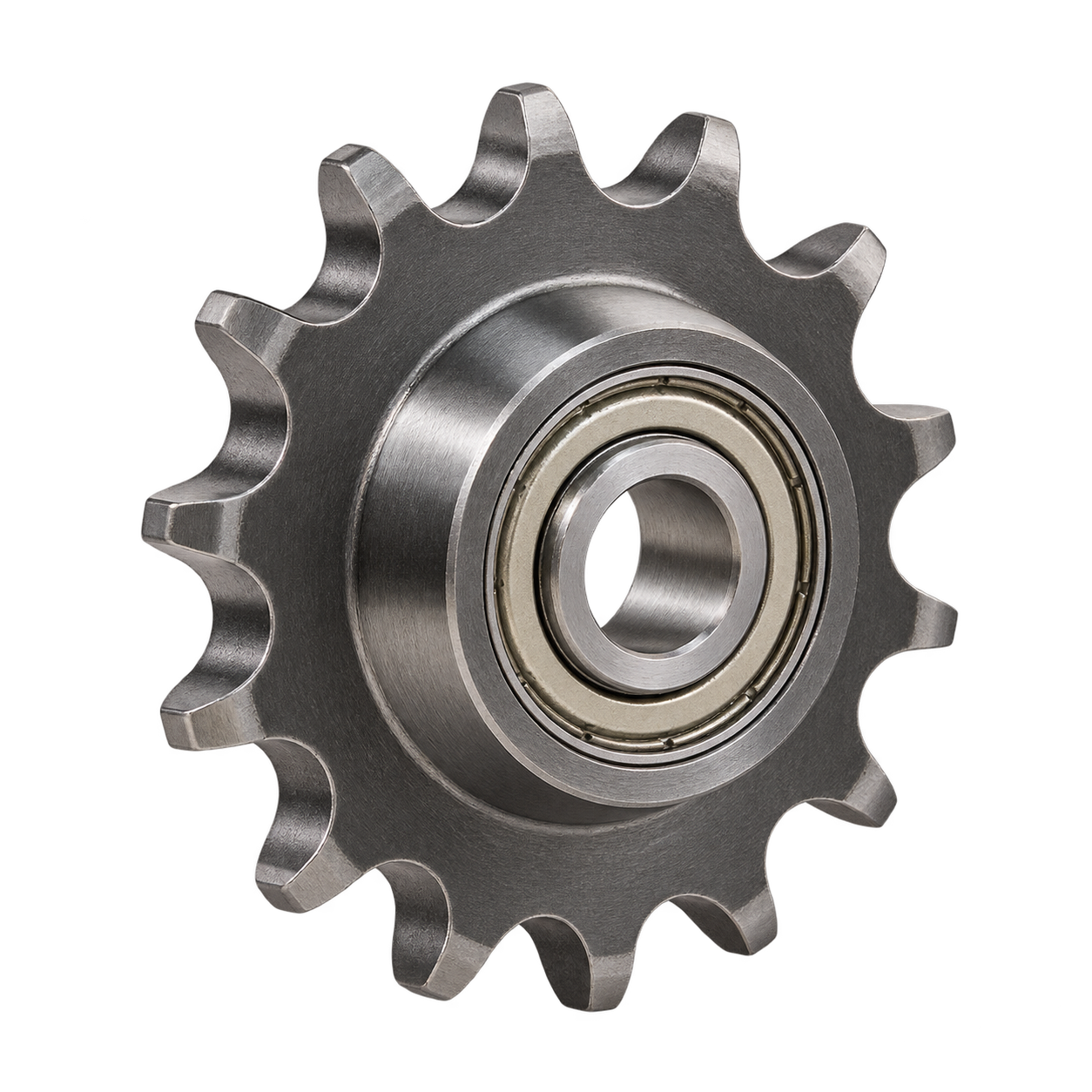

Idler sprockets are non-powered sprockets designed to spin freely on a shaft, pin, or bearing without transmitting torque. Their primary role is to guide, support, and maintain proper tension in a roller chain drive — keeping the chain aligned, reducing slack, and preventing excessive wear or vibration during operation. They're widely used in conveyor systems, packaging equipment, agricultural machinery, and general power transmission applications where chain routing needs to be controlled without adding drive power.
What Is an Idler Sprocket Used For?
An idler sprocket is a non-powered sprocket that spins freely on a shaft, pin, or bearing to guide and support a roller chain without transmitting torque. It's used to maintain proper chain tension, control chain routing around obstacles, reduce slack and vibration, and prevent premature chain or sprocket wear in conveyor lines, packaging equipment, agricultural machinery, and other chain-drive systems.
How Do I Choose the Right Idler Sprocket?
Selection depends on several factors:
- Chain type and pitch — match the sprocket to ANSI or metric chain specifications, and to single- or double-strand configurations

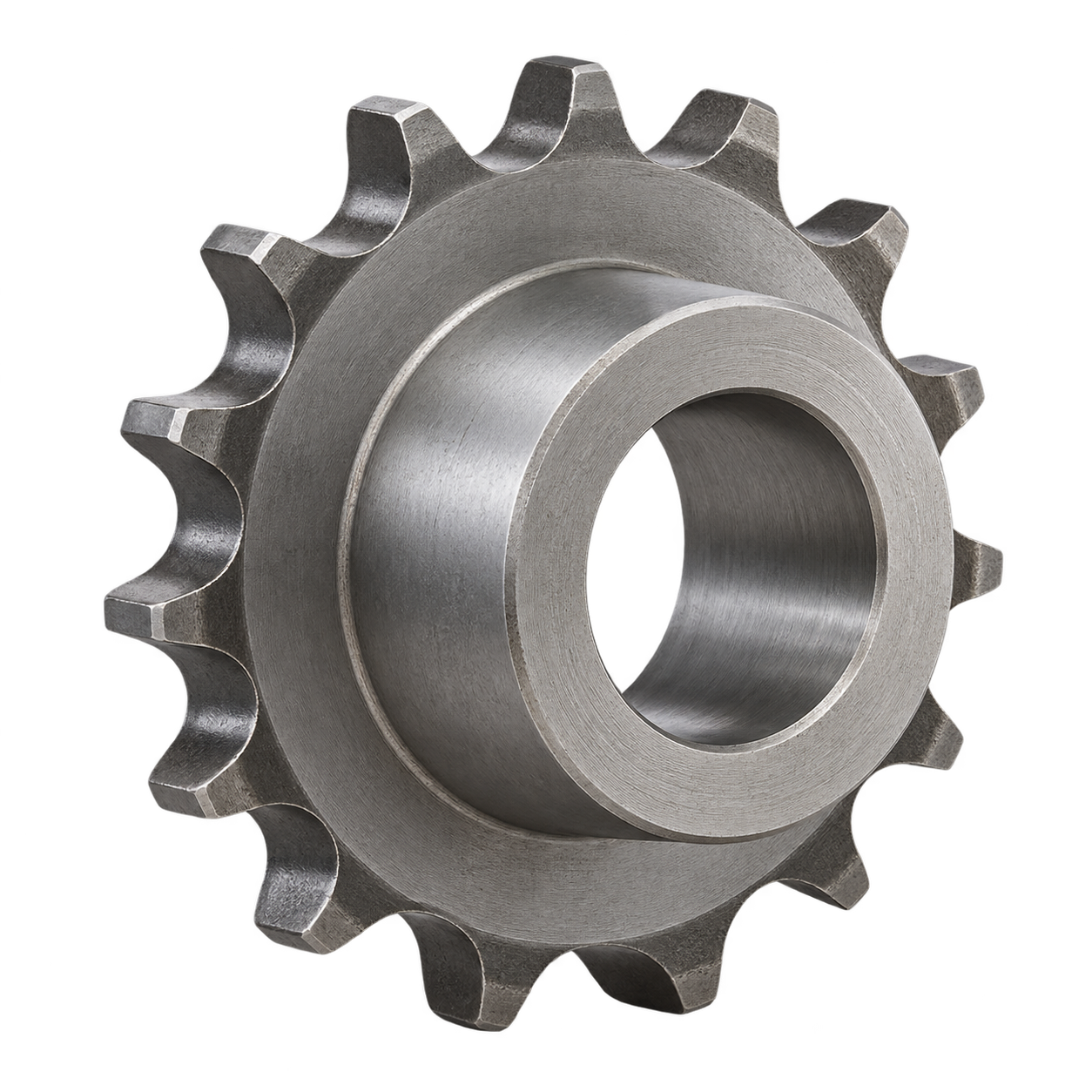

- Bore requirements — a standard finished bore, or a machinable pilot bore for a custom shaft fit

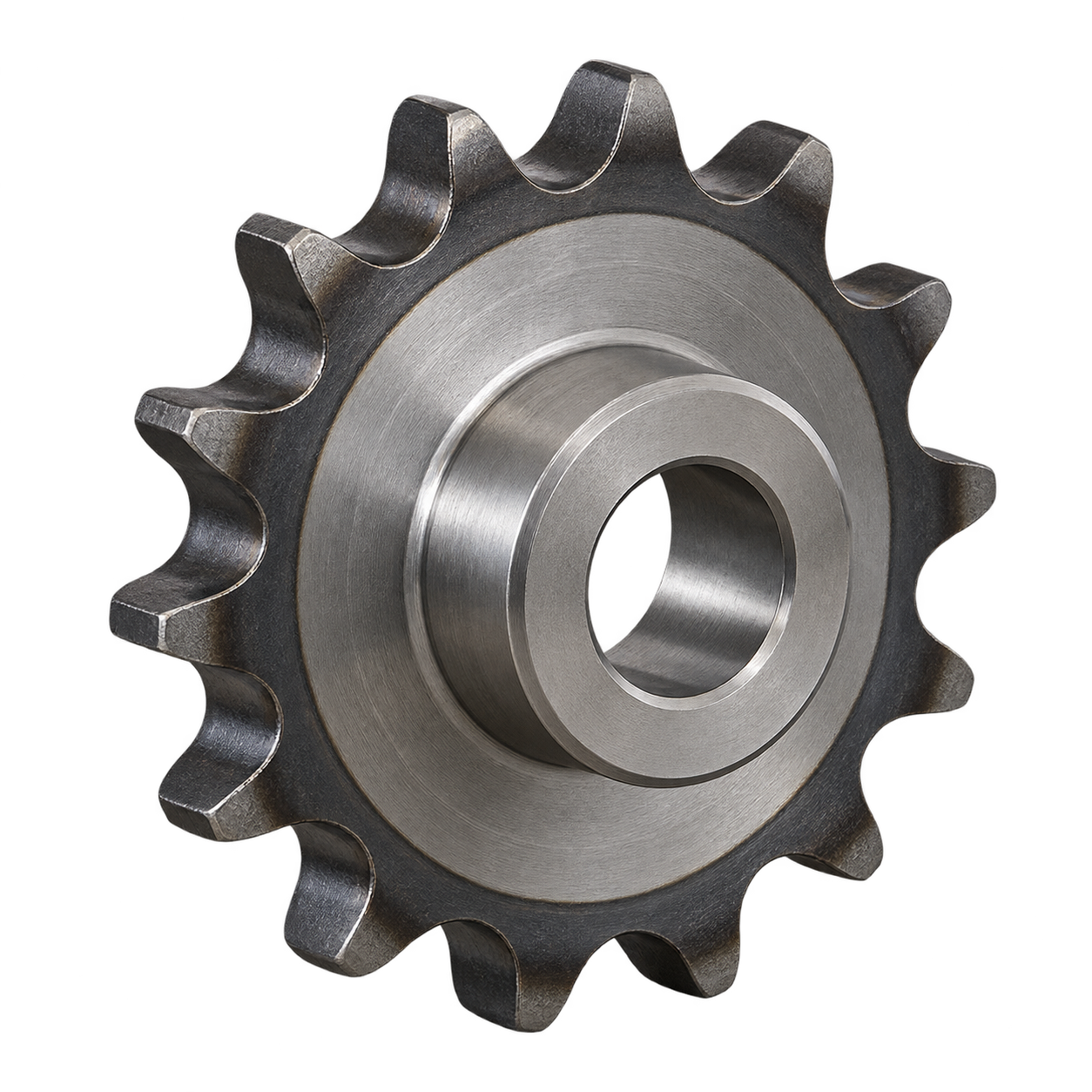

- Load and duty cycle — higher-load or continuous-use applications benefit from wear-resistant construction

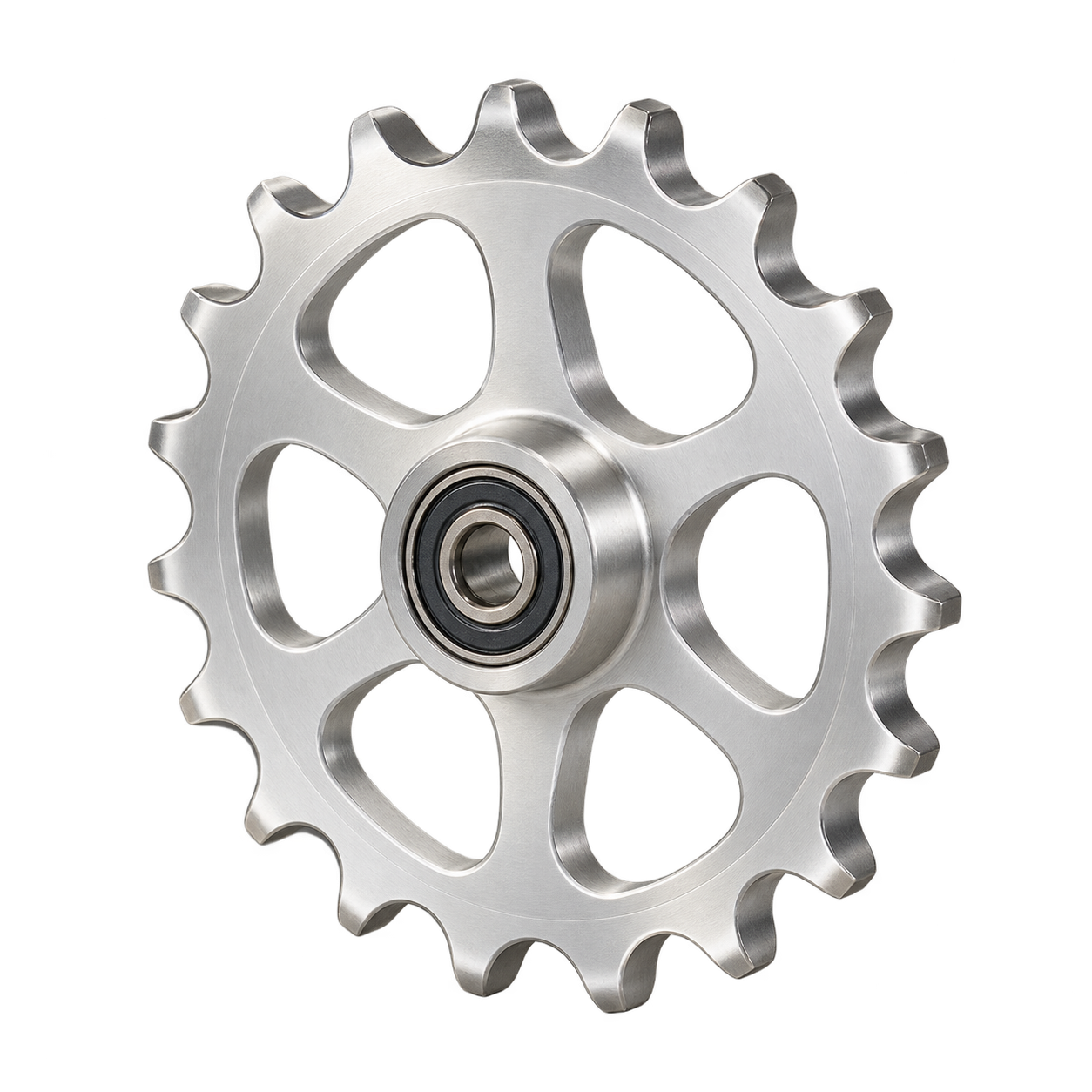

- Weight considerations — lightweight materials reduce rotating mass in high-speed or frequently-cycling systems

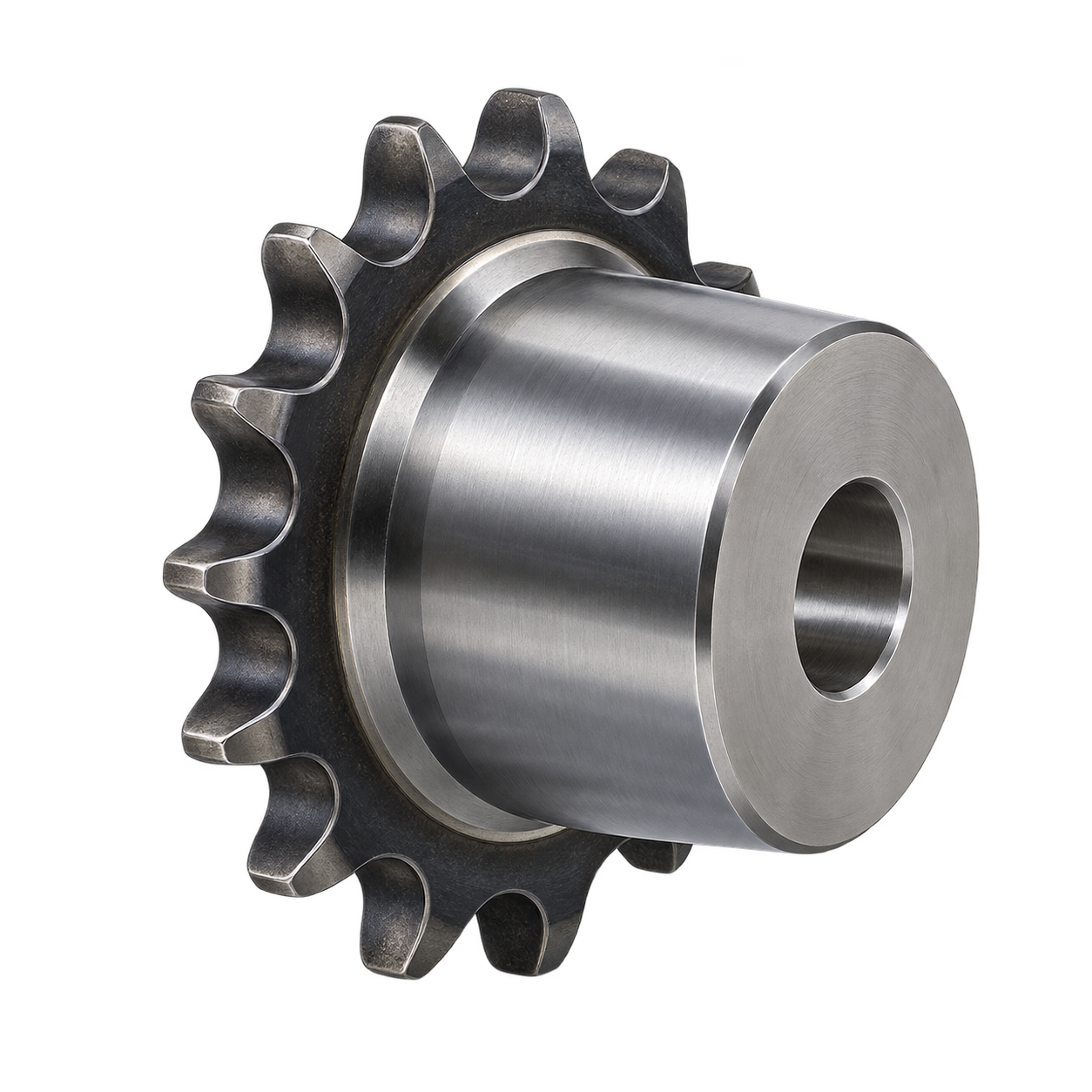

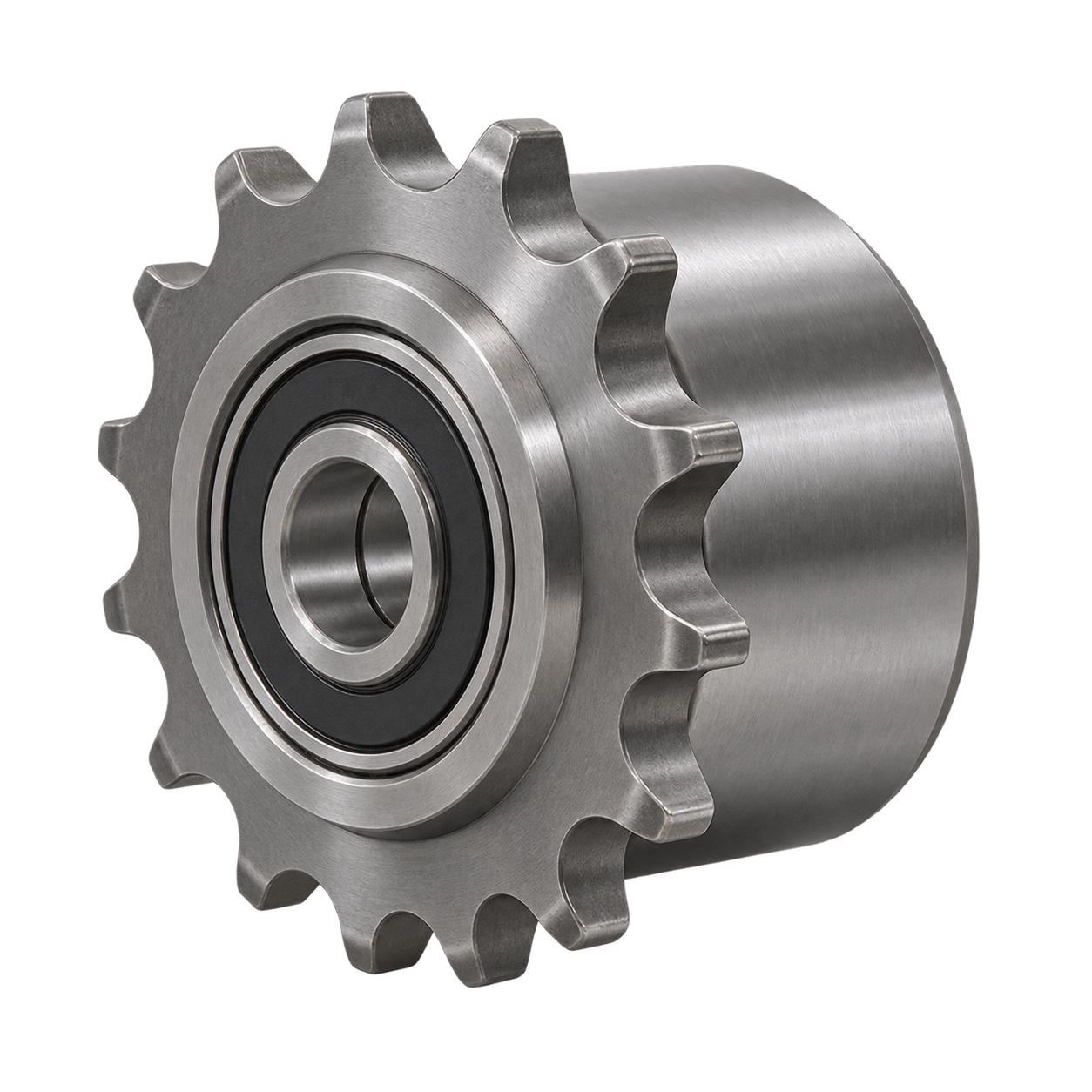

- Mounting stability — wide-hub designs offer more mounting surface area and reduce misalignment risk, and can include integrated bearings for smoother rotation.
What Chain Sizes Are Compatible with Idler Sprockets?

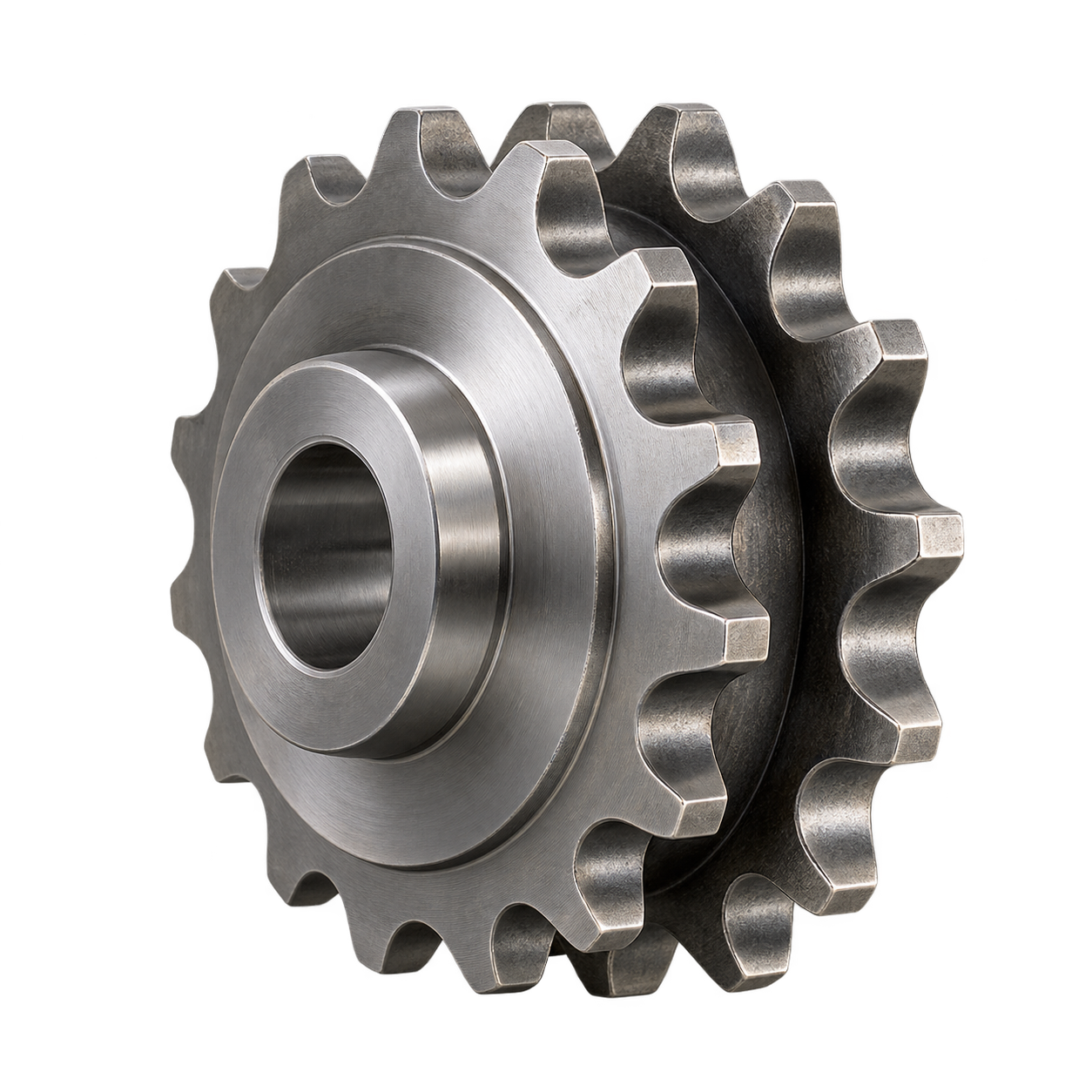

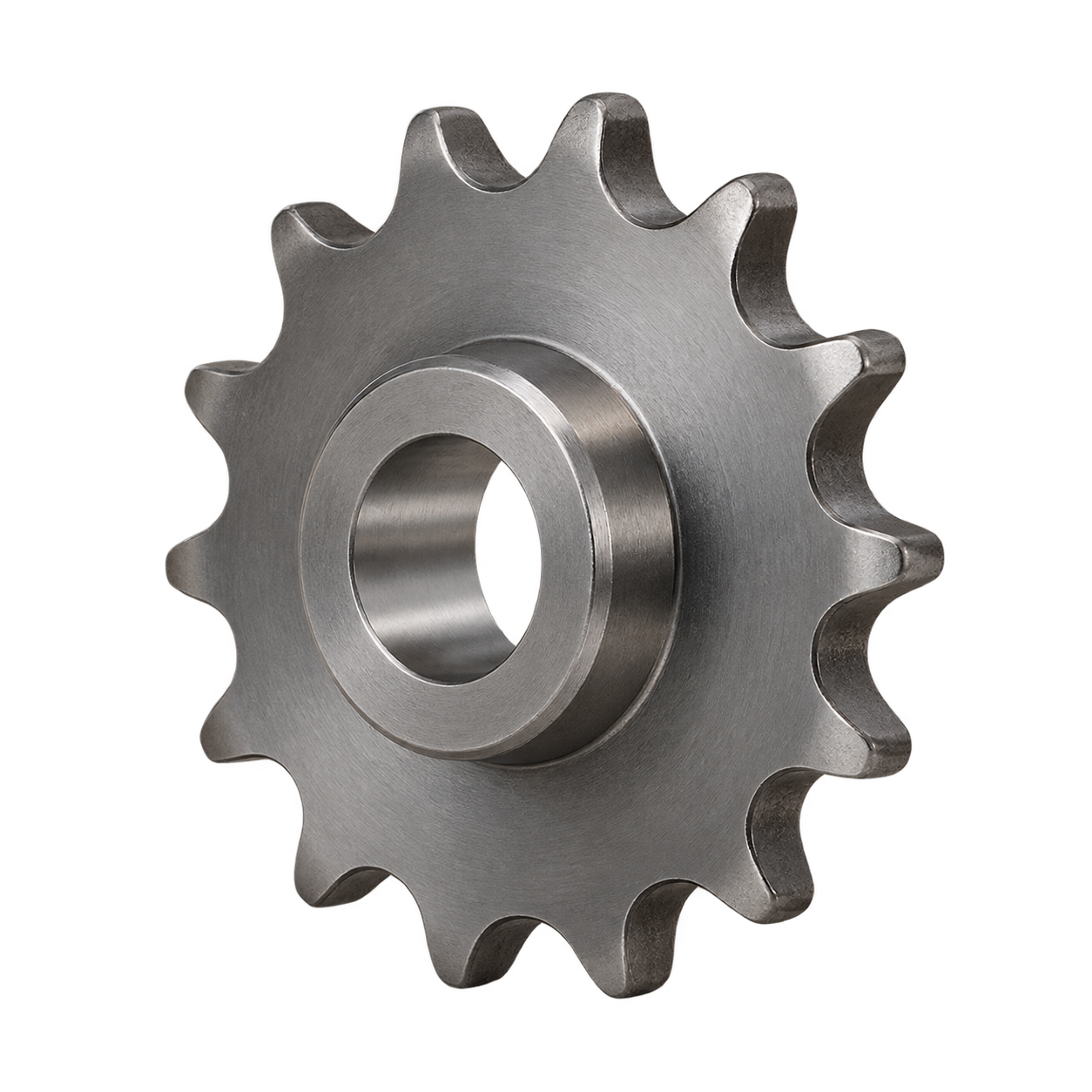

Idler sprockets are available for standard ANSI roller chain sizes (single-strand and double-strand) as well as metric roller chain, so the right size is selected to match your chain's pitch, roller diameter, and strand configuration.
What Materials Are Idler Sprockets Available In?
Common materials include hardened steel or wear-resistant alloys for demanding, high-friction applications, and lightweight materials such as aluminum, high-strength plastics, or composites for applications prioritizing a high strength-to-weight ratio.
Can Idler Sprockets Be Customized?
Yes. Idler sprockets are commonly supplied with a machinable pilot bore that can be bored, drilled, or reamed to an exact shaft diameter. Custom options may also include hub width, integrated bearing type (ball, needle, or roller), tooth count, and material selection to suit specific load and environmental conditions.
What Information Is Needed to Order a Custom Idler Sprocket?
To order a custom idler sprocket, typically provide:
- Chain type, pitch, and number of strands (ANSI or metric)
- Number of teeth
- Required bore diameter and tolerance (or shaft drawing)
- Hub width and outer diameter constraints
- Whether an integrated bearing is needed (and bearing type/size)
- Material preference and any surface treatment requirements
- Expected load, speed, and operating environment (e.g., dust, moisture, temperature)
