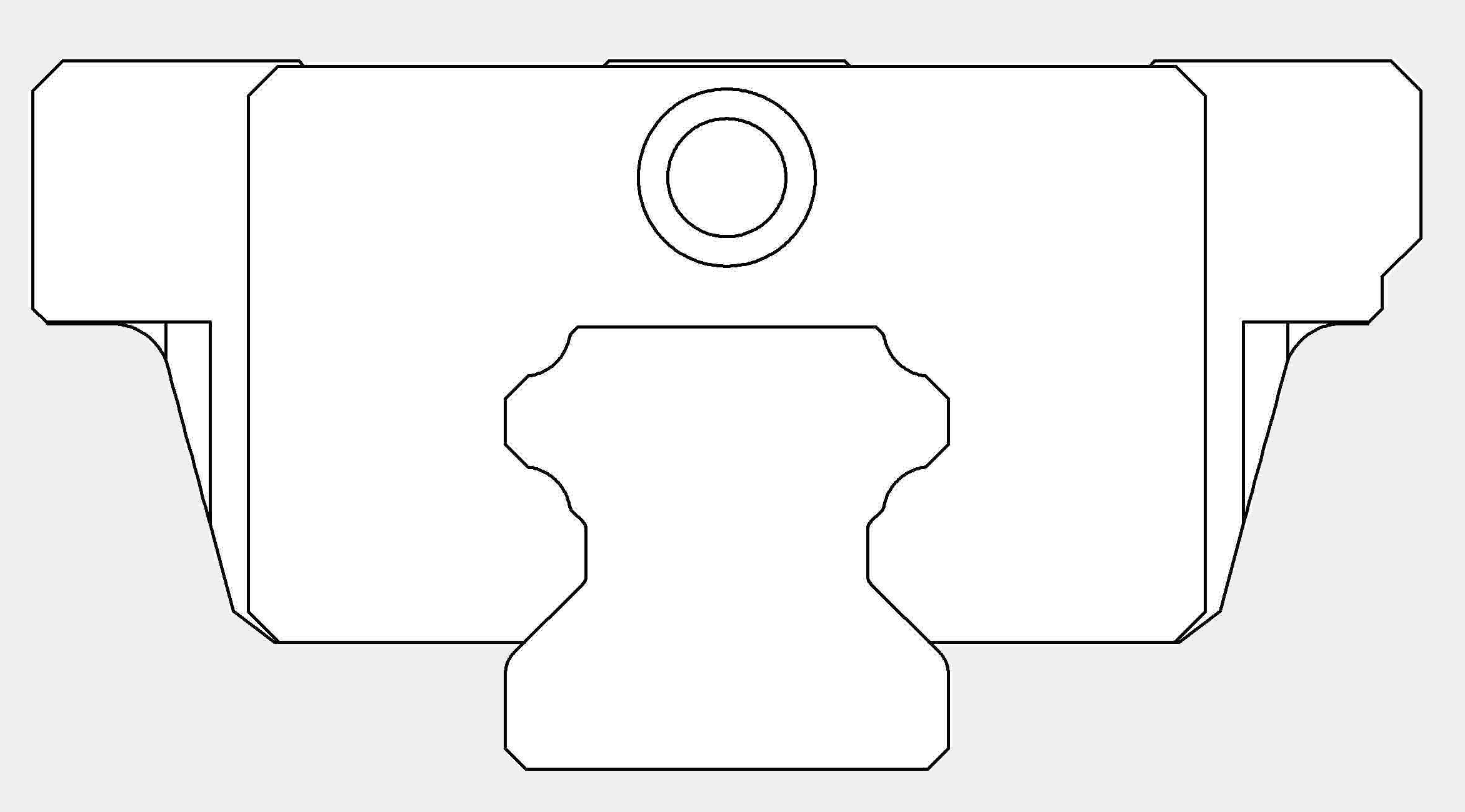

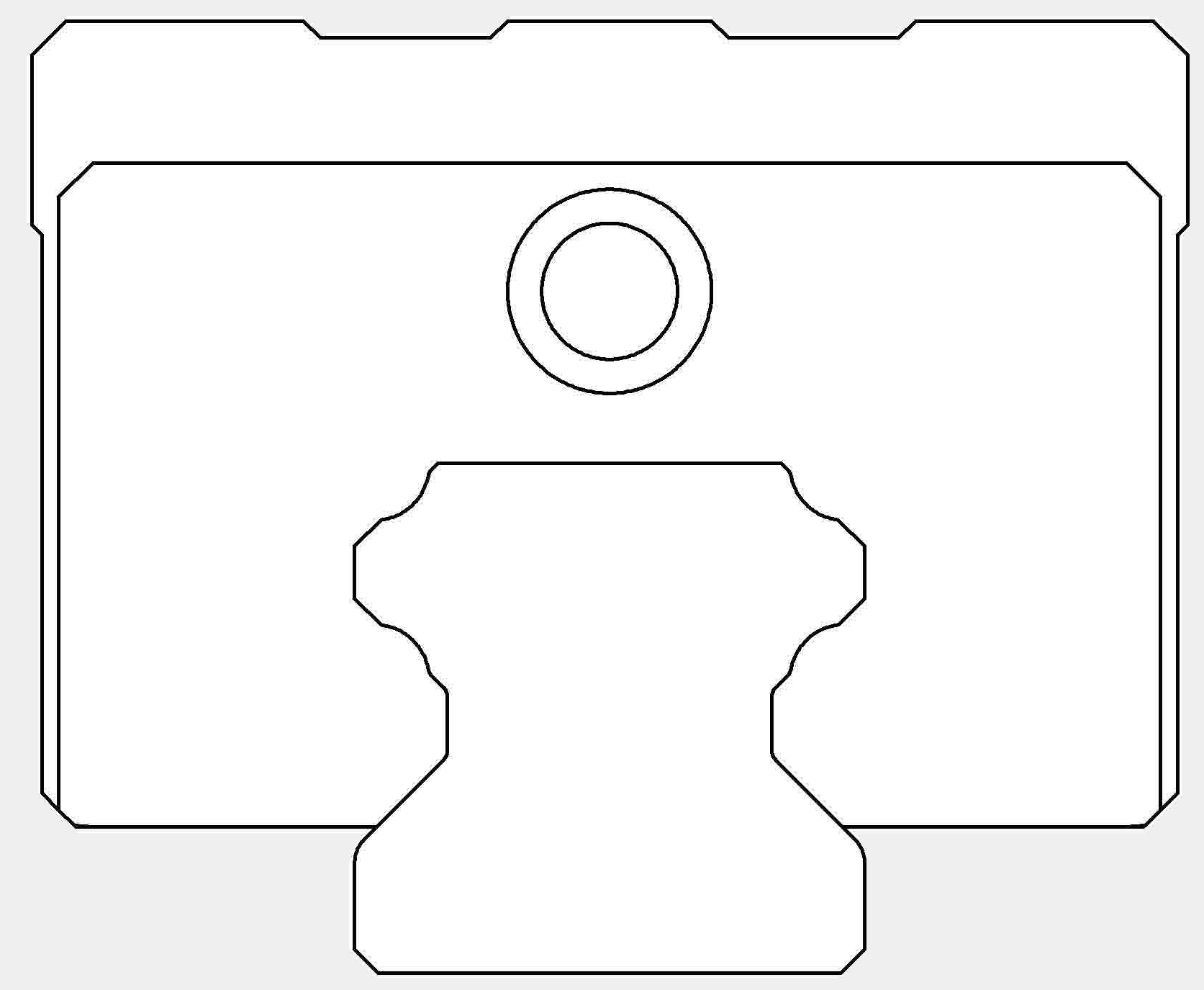

Block Type
Rail Length
Number of Rail Holes
Linear Guides
2418 Products
Heavy Duty Ball Linear Guideway-HG Series
HG series linear guideway is a four-row, single arc 45° tooth contact type linear guide. It features equal load in all directions and automatic self-aligning functions, which can absorb installation surface assembly errors, achieving high precision. The concepts of high speed, high load capacity, high rigidity, and high precision have become trends in the development of industrial products.
Low Profile Ball Type Linear Guideway-EG Series
EG series adopts a four-row ball design to withstand loads, providing high rigidity and high load-bearing capacity. It features equal load capacity in four directions and a self-aligning function, which helps absorb assembly errors on the mounting surface, ensuring high precision. With a reduced overall height design, it effectively minimizes the installation height of equipment compared to traditional guide rails, making it suitable for applications with space constraints.
Silent Heavy Load Ball Type Linear Guideway-QH Series
The QH Series silent ball linear guide still adopts a four-row single arc groove contact design. To further enhance its competitive advantage, the QH Series linear guide is equipped with a silent chain belt for each row of steel balls, preventing friction between the steel balls. This effectively reduces noise during operation and improves stability and smoothness. It is particularly suitable for high-speed, silent, and low-dust applications in high-tech industries.
LSilent Low Assembly Ball Type Linear Guideway-QE Series
The QE Series silent ball linear guide still adopts a four-row single arc groove contact design. To further enhance its competitive advantage, the QE Series linear guide is equipped with a silent chain belt for each row of steel balls, preventing friction between the steel balls. This effectively reduces noise during operation and improves stability and smoothness. It is particularly suitable for high-speed, silent, and low-dust applications in high-tech industries.
Roller Type Linear Guideway-RG Series
The RG series roller linear guideway uses rollers as rolling elements instead of conventional steel balls. The rolling elements are in line contact with the block and rail, providing higher rigidity and load capacity under the same specifications. Designed with a 45-degree contact angle, it offers equal load capacity in four directions. Each row of rollers is equipped with a silent chain to prevent mutual friction between rollers, effectively reducing the noise of the guideway system. This also ensures smoother transitions when rollers enter and exit the load and non-load zones, significantly enhancing operational stability and smoothness. It is particularly suitable for equipment requiring high silence, high rigidity, high load capacity, and high precision.
