To streamline precise configuration and selection, the RG Series model numbering system employs a standardized alphanumeric code structure. This modular framework defines critical parameters, including load capacity (Heavy/Ultra Heavy Load), mounting orientation (Top/Bottom), precision grade (H/P), preload level (Z0/ZA/ZB), and rail length (mm).

The RG Series linear guideway delivers high performance, making it suitable for high-precision manufacturing and extending service life. It is particularly ideal for high-rigidity equipment used in high-speed automation industrial machinery.

For custom linear guides, please specify the rail length (in 1 mm increments).

Note: Each block can only be used with its corresponding guide rail.

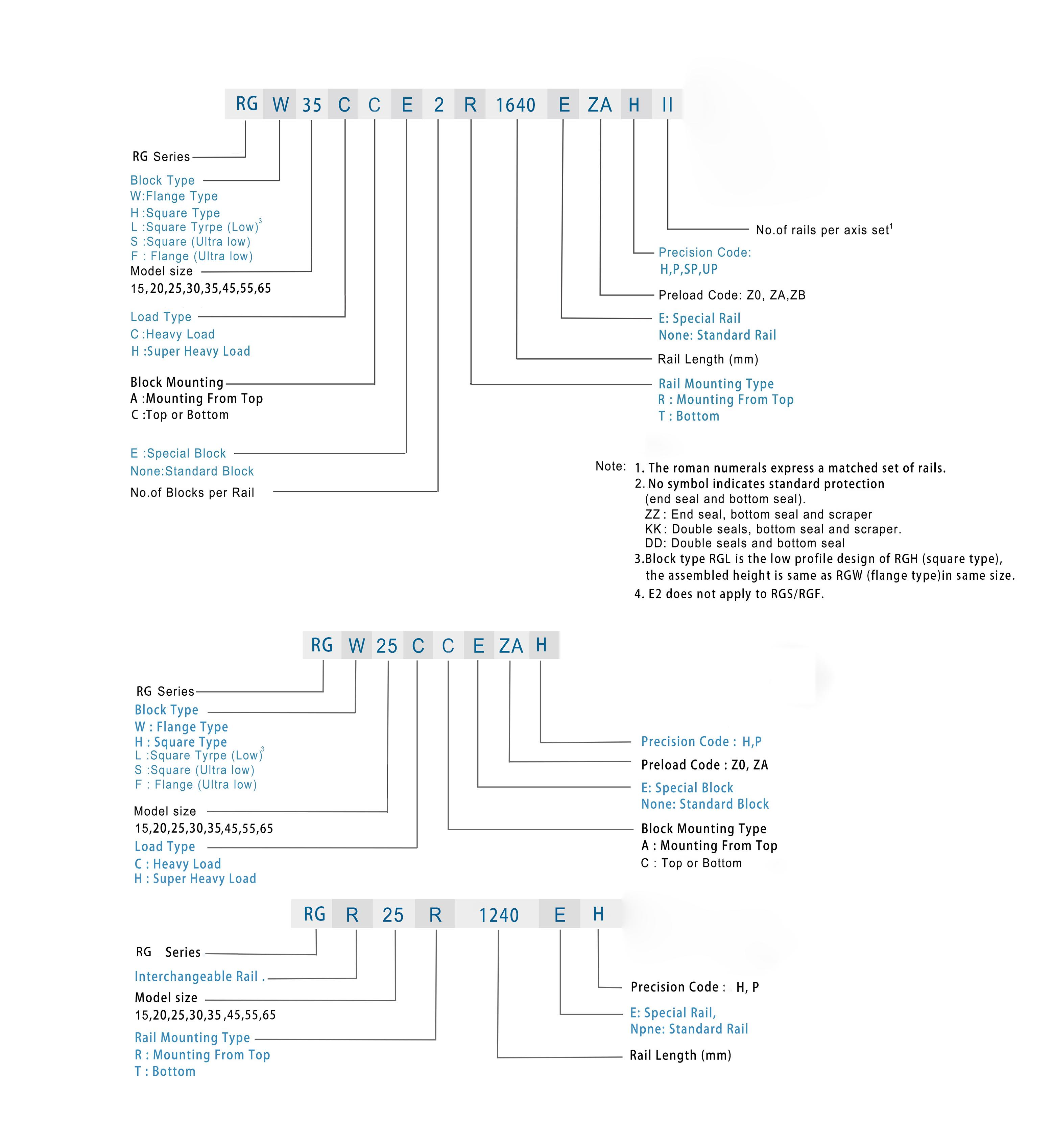

Refer to the diagram below for a detailed breakdown of the model code components.

Close
Roller Type Linear Guideway Roller Type Linear Guideway
Part Number
Rail Width (WR)
Rail Height (HR)
Assembly Height (H)
Block Type
Load Type
Block Width (W)
Block Mounting hole Width (B)
Block Mounting hole Length (C)
Block Length (L)
Rail Length
Pitch (P)
Price
>
Part Number
Rail Width (WR)
Rail Height (HR)
Assembly Height (H)
Block Type
Load Type
Block Width (W)
Block Mounting hole Width (B)
Block Mounting hole Length (C)
Block Length (L)
Rail Length
Pitch (P)
Price
>
RGH15CA1R1120ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
1120 mm
30 mm
$247.95
RGH15CA1R1360ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
1360 mm
30 mm
$278.81
RGH15CA1R160ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
160 mm
30 mm
$96.66
RGH15CA1R220ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
220 mm
30 mm
$111.71
RGH15CA1R340ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
340 mm
30 mm
$126.77
RGH15CA1R460ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
460 mm
30 mm
$141.82
RGH15CA1R580ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
580 mm
30 mm
$156.88
RGH15CA1R700ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
700 mm
30 mm
$172.68
RGH15CA1R940ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
940 mm
30 mm
$217.84
RGH15CA2R1120ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
1120 mm
30 mm
$313.75
RGH15CA2R1360ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
1360 mm
30 mm
$344.61
RGH15CA2R160ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
160 mm
30 mm
$162.46
RGH15CA2R220ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
220 mm
30 mm
$177.51
RGH15CA2R340ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
340 mm
30 mm
$192.57
RGH15CA2R460ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
460 mm
30 mm
$207.62
RGH15CA2R580ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
580 mm
30 mm
$222.68
RGH15CA2R700ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
700 mm
30 mm
$238.48
RGH15CA2R940ZAH
15 mm
16.5 mm
28 mm
Standard
Heavy Load
34 mm
26 mm
26 mm
68 mm
940 mm
30 mm
$283.64
RGR15R1120H
15 mm
16.5 mm
-
-
-
-
-
-
-
1120 mm
30 mm
-
RGR15R1360H
15 mm
16.5 mm
-
-
-
-
-
-
-
1360 mm
30 mm
-
RGR15R160H
15 mm
16.5 mm
-
-
-
-
-
-
-
160 mm
30 mm
-
RGR15R220H
15 mm
16.5 mm
-
-
-
-
-
-
-
220 mm
30 mm
-
RGR15R340H
15 mm
16.5 mm
-
-
-
-
-
-
-
340 mm
30 mm
-
RGR15R460H
15 mm
16.5 mm
-
-
-
-
-
-
-
460 mm
30 mm
-
RGR15R580H
15 mm
16.5 mm
-
-
-
-
-
-
-
580 mm
30 mm
-
RGR15R700H
15 mm
16.5 mm
-
-
-
-
-
-
-
700 mm
30 mm
-
RGR15R940H
15 mm
16.5 mm
-
-
-
-
-
-
-
940 mm
30 mm
-
RGW15CC1R1120ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
1120 mm
30 mm
$247.95
RGW15CC1R1360ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
1360 mm
30 mm
$278.81
RGW15CC1R160ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
160 mm
30 mm
$96.66
RGW15CC1R220ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
220 mm
30 mm
$111.71
RGW15CC1R340ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
340 mm
30 mm
$126.77
RGW15CC1R460ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
460 mm
30 mm
$141.82
RGW15CC1R580ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
580 mm
30 mm
$156.88
RGW15CC1R700ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
700 mm
30 mm
$172.68
RGW15CC1R940ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
940 mm
30 mm
$217.84
RGW15CC2R1120ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
1120 mm
30 mm
$313.75
RGW15CC2R1360ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
1360 mm
30 mm
$344.61
RGW15CC2R160ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
160 mm
30 mm
$162.46
RGW15CC2R220ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
220 mm
30 mm
$177.51
RGW15CC2R340ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
340 mm
30 mm
$192.57
RGW15CC2R460ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
460 mm
30 mm
$207.62
RGW15CC2R580ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
580 mm
30 mm
$222.68
RGW15CC2R700ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
700 mm
30 mm
$238.48
RGW15CC2R940ZAH
15 mm
16.5 mm
24 mm
Wide
Heavy Load
47 mm
38 mm
30 mm
68 mm
940 mm
30 mm
$283.64
SRG15-1120LH
15 mm
15.5 mm
-
-
-
-
-
-
-
1120 mm
30 mm
-
SRG15-1360LH
15 mm
15.5 mm
-
-
-
-
-
-
-
1360 mm
30 mm
-
SRG15-160LH
15 mm
15.5 mm
-
-
-
-
-
-
-
160 mm
30 mm
-
SRG15-220LH
15 mm
15.5 mm
-
-
-
-
-
-
-
220 mm
30 mm
-
SRG15-340LH
15 mm
15.5 mm
-
-
-
-
-
-
-
340 mm
30 mm
-
