Heavy Duty Ball Linear Guideway

632 Products
More

To streamline precise configuration and selection, the HG Series model numbering system employs a standardized alphanumeric code structure. This modular framework defines critical parameters, including load capacity (Heavy/Super Heavy), mounting orientation (Top/Bottom), precision grade (C/H/P), preload level (Z0/ZA/ZB), and rail length (mm). Designed for high-rigidity industrial applications, this system ensures compatibility with diverse automation and machinery requirements.

For Custom Linear Guides, please specify the length of the rail (in 1 mm increments).

Note: Each block can only be used with its corresponding guide rail.

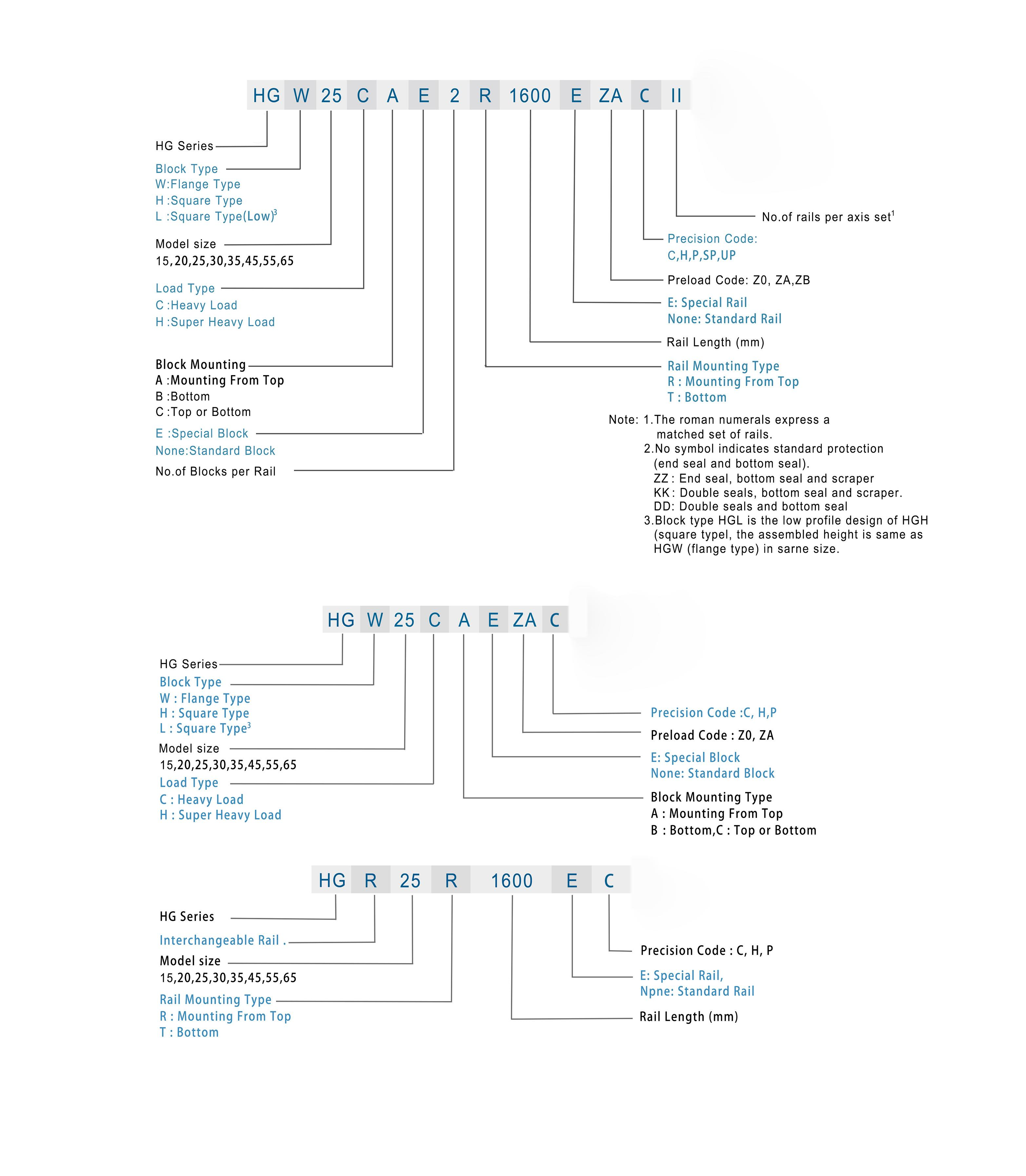

Refer to the diagram below for a detailed breakdown of the model code components:

Close
Heavy Duty Ball Linear Guideway Heavy Duty Ball Linear Guideway
Part Number
Rail Width (WR)
Rail Height (HR)
Assembly Height (H)
Block Type
Load Type
Block Width (W)
Block Mounting hole Width (B)
Block Mounting hole Length (C)
Block Length (L)
Rail Length
Pitch (P)
Price
>
Part Number
Rail Width (WR)
Rail Height (HR)
Assembly Height (H)
Block Type
Load Type
Block Width (W)
Block Mounting hole Width (B)
Block Mounting hole Length (C)
Block Length (L)
Rail Length
Pitch (P)
Price
>
HGH15CA1R160ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
160 mm
60 mm
$67.42
HGH15CA1R220ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
220 mm
60 mm
$74.86
HGH15CA1R280ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
280 mm
60 mm
$80.21
HGH15CA1R340ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
340 mm
60 mm
$85.15
HGH15CA1R460ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
460 mm
60 mm
$96.10
HGH15CA1R640ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
640 mm
60 mm
$112.44
HGH15CA1R820ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
820 mm
60 mm
$128.78
HGH15CA2R160ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
160 mm
60 mm
$117.73
HGH15CA2R220ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
220 mm
60 mm
$130.12
HGH15CA2R280ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
280 mm
60 mm
$134.27
HGH15CA2R340ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
340 mm
60 mm
$138.96
HGH15CA2R460ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
460 mm
60 mm
$148.32
HGH15CA2R640ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
640 mm
60 mm
$162.49
HGH15CA2R820ZAC
15 mm
15 mm
28 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
820 mm
60 mm
$176.92
HGL15CA1R160ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
160 mm
60 mm
$67.42
HGL15CA1R220ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
220 mm
60 mm
$74.86
HGL15CA1R280ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
280 mm
60 mm
$80.21
HGL15CA1R340ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
340 mm
60 mm
$85.15
HGL15CA1R460ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
460 mm
60 mm
$96.10
HGL15CA1R640ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
640 mm
60 mm
$112.44
HGL15CA1R820ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
820 mm
60 mm
$128.78
HGL15CA2R160ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
160 mm
60 mm
$117.73
HGL15CA2R220ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
220 mm
60 mm
$130.12
HGL15CA2R280ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
280 mm
60 mm
$134.27
HGL15CA2R340ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
340 mm
60 mm
$138.96
HGL15CA2R460ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
460 mm
60 mm
$148.32
HGL15CA2R640ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
640 mm
60 mm
$162.49
HGL15CA2R820ZAC
15 mm
15 mm
24 mm
Square Type
Heavy Load
34 mm
26 mm
26 mm
61.4 mm
820 mm
60 mm
$176.92
HGW15CC1R160ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
160 mm
60 mm
$72.94
HGW15CC1R220ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
220 mm
60 mm
$80.91
HGW15CC1R280ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
280 mm
60 mm
$87.24
HGW15CC1R340ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
340 mm
60 mm
$93.25
HGW15CC1R460ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
460 mm
60 mm
$104.99
HGW15CC1R640ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
640 mm
60 mm
$122.58
HGW15CC1R820ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
820 mm
60 mm
$139.50
HGW15CC2R160ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
160 mm
60 mm
$120.09
HGW15CC2R220ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
220 mm
60 mm
$132.57
HGW15CC2R280ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
280 mm
60 mm
$139.07
HGW15CC2R340ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
340 mm
60 mm
$144.83
HGW15CC2R460ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
460 mm
60 mm
$156.57
HGW15CC2R640ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
640 mm
60 mm
$174.16
HGW15CC2R820ZAC
15 mm
15 mm
24 mm
Flange Type
Heavy Load
47 mm
38 mm
30 mm
61.4 mm
820 mm
60 mm
$191.24
HGH20CA1R1000ZAC
20 mm
17.5 mm
30 mm
Square Type
Heavy Load
44 mm
32 mm
36 mm
77.5 mm
1000 mm
60 mm
$161.79
HGH20CA1R1240ZAC
20 mm
17.5 mm
30 mm
Square Type
Heavy Load
44 mm
32 mm
36 mm
77.5 mm
1240 mm
60 mm
$191.54
HGH20CA1R220ZAC
20 mm
17.5 mm
30 mm
Square Type
Heavy Load
44 mm
32 mm
36 mm
77.5 mm
220 mm
60 mm
$82.34
HGH20CA1R280ZAC
20 mm
17.5 mm
30 mm
Square Type
Heavy Load
44 mm
32 mm
36 mm
77.5 mm
280 mm
60 mm
$88.22
HGH20CA1R340ZAC
20 mm
17.5 mm
30 mm
Square Type
Heavy Load
44 mm
32 mm
36 mm
77.5 mm
340 mm
60 mm
$93.67
HGH20CA1R460ZAC
20 mm
17.5 mm
30 mm
Square Type
Heavy Load
44 mm
32 mm
36 mm
77.5 mm
460 mm
60 mm
$105.70
HGH20CA1R640ZAC
20 mm
17.5 mm
30 mm
Square Type
Heavy Load
44 mm
32 mm
36 mm
77.5 mm
640 mm
60 mm
$123.70
HGH20CA1R820ZAC
20 mm
17.5 mm
30 mm
Square Type
Heavy Load
44 mm
32 mm
36 mm
77.5 mm
820 mm
60 mm
$141.67
