Bushing-Bore Sprockets
254 Products

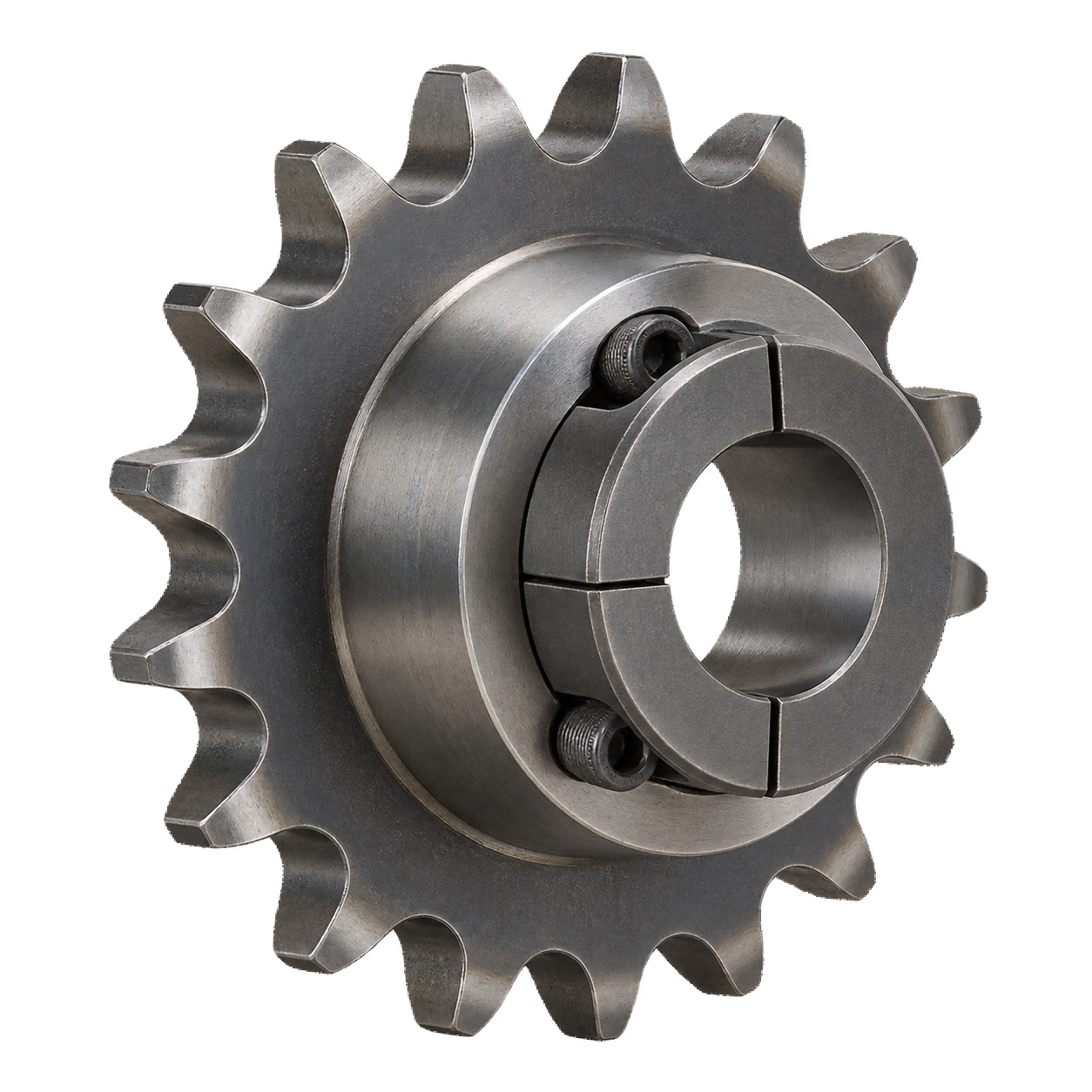

Split-Tapered Bushing-Bore Sprockets for ANSI Roller Chain
The split-tapered bushing system consists of a tapered bushing that is split into two halves. When the bushing is inserted into the sprocket’s bore and the screws are tightened, the bushing contracts onto the shaft, creating a strong, secure connection.

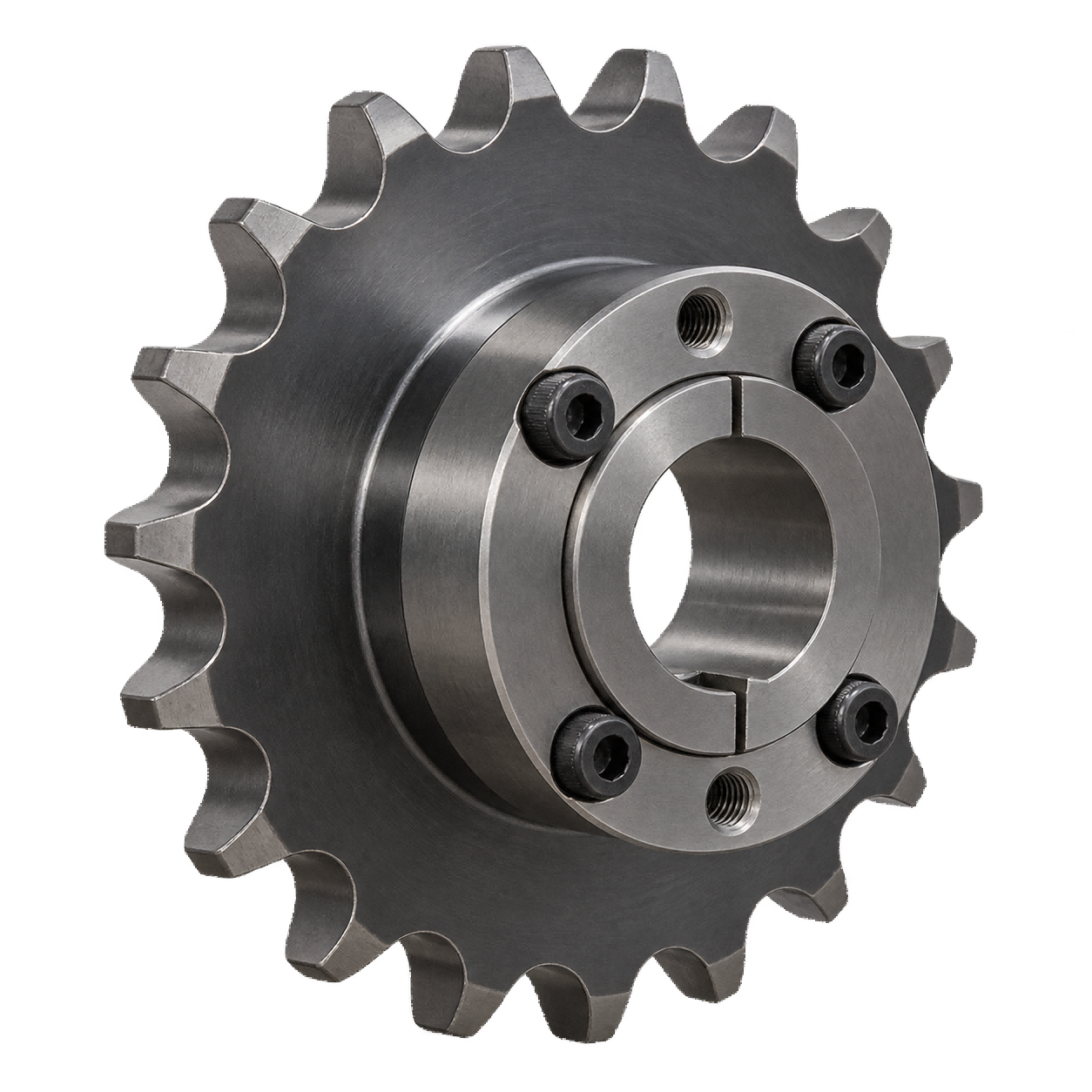

Quick-Disconnect (QD) Bushing-Bore Sprockets for ANSI Roller Chain
This system allows the sprocket to be quickly and easily mounted onto or removed from a shaft, providing a secure and precise fit.

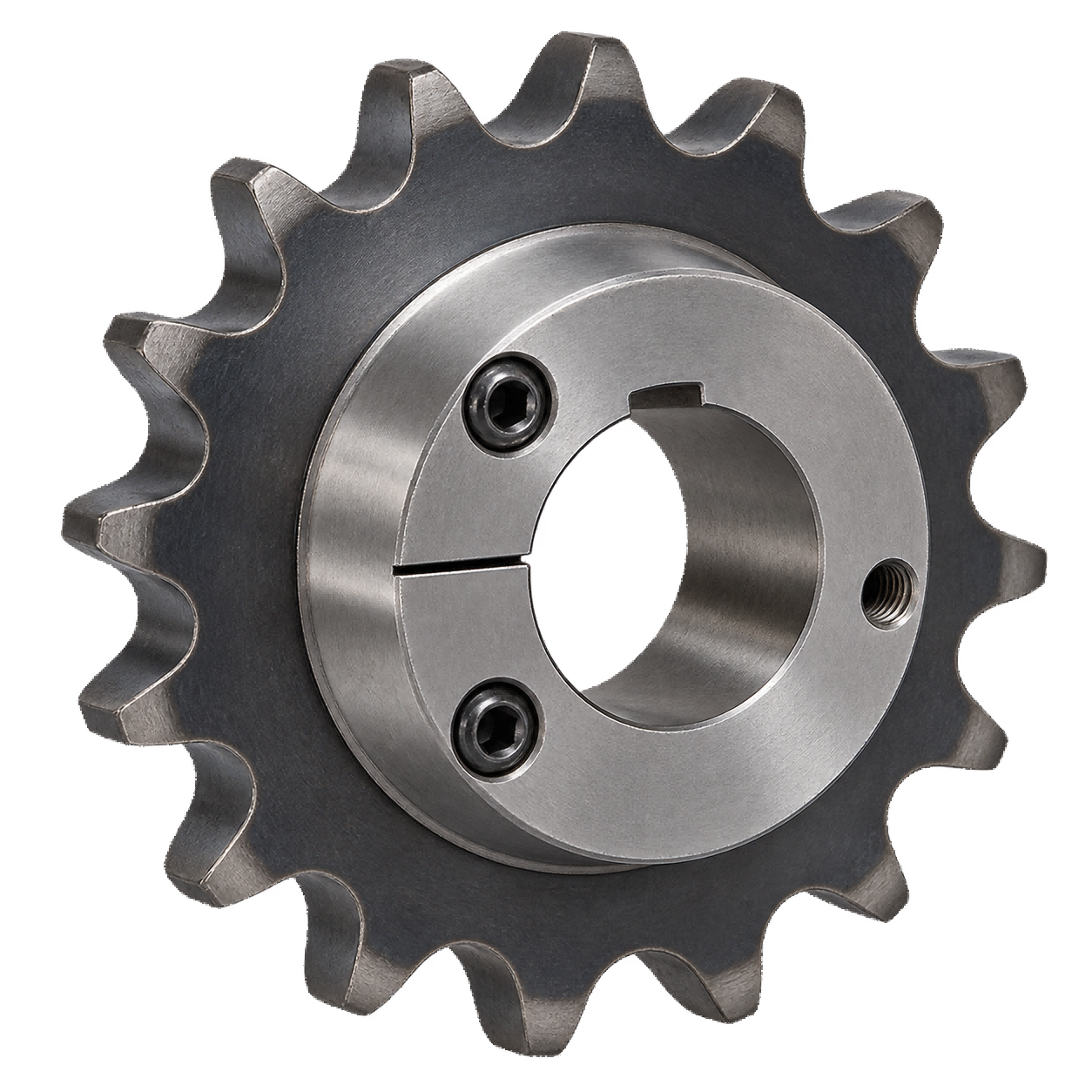

Taper-Lock Bushing-Bore Sprockets for ANSI Roller Chain
The Taper-Lock system involves a tapered bushing that fits into a matching tapered bore in the sprocket. When the bushing is tightened using set screws, it creates a strong, friction-based connection with the shaft.

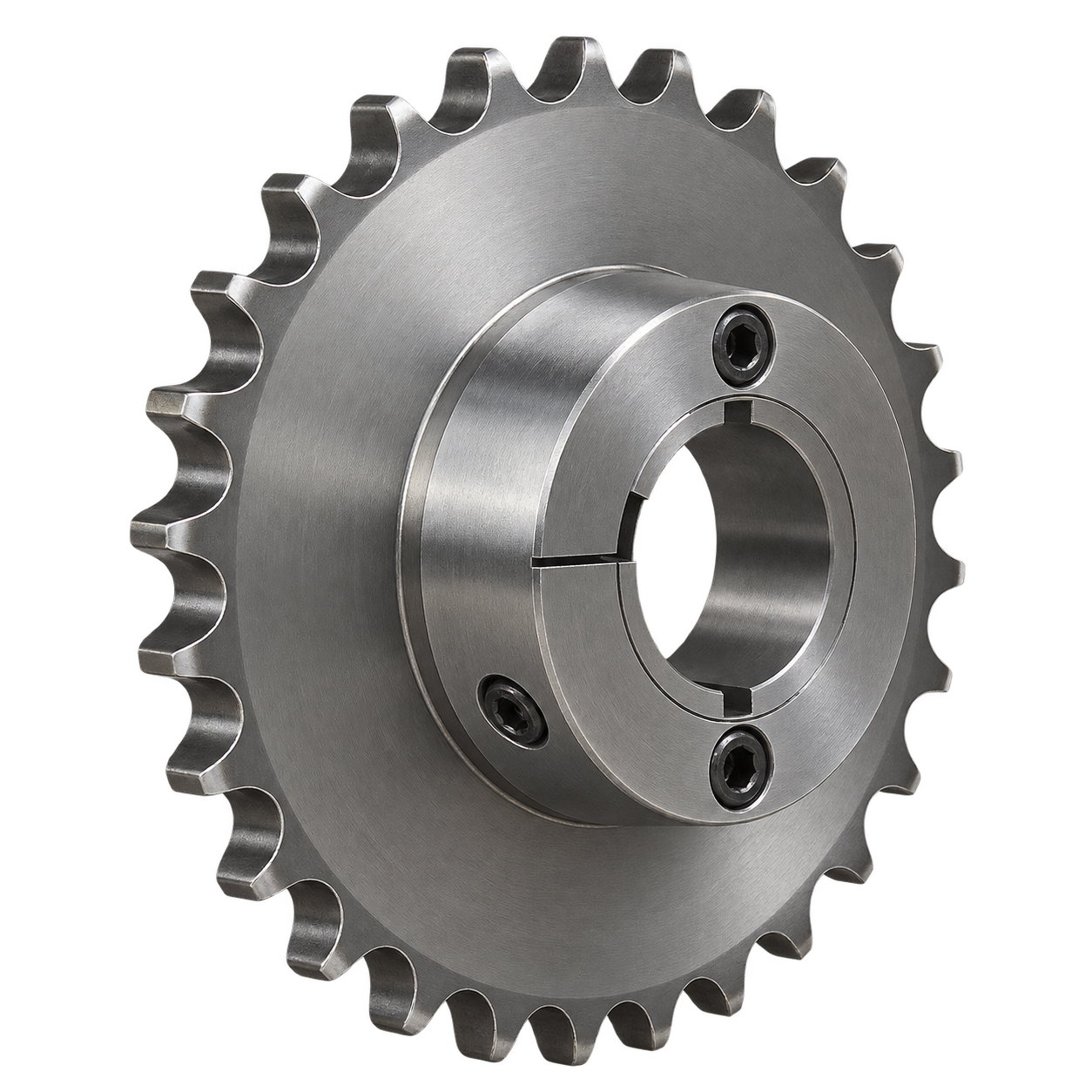

Taper-Lock Bushing-Bore Sprockets for Metric Roller Chain
The Taper-Lock system consists of a tapered bushing that fits into a corresponding tapered bore in the sprocket, allowing for a secure, friction-based connection that is easy to install and remove.
Bushing-bore sprockets feature an integrated bushing system that creates a secure, compression-fit connection between sprocket and shaft. This design eliminates the need for complex machining while providing superior torque transmission and resistance to shock loads across various industrial applications.
Key Features of Bushing-bore Sprockets
- Precise Compatibility: Designed for ANSI and metric roller chains with pitch sizes from 0.375" to 1.000" (9.53mm to 25.4mm).
- Enhanced Durability: Steel construction with hardened teeth for extended service life.
- Versatile Configuration: Available with 12-60 teeth to match specific speed and torque requirements.
- Secure Mounting: Hub diameters from 2.5" to 4.375" (46mm to 90.47mm) ensure proper fitment.
- Optimized Dimensions: OD sizes ranging from 67.82mm to 160.53mm for space-efficient installations.
Types of Bushing-bore Sprockets
Quick-Disconnect (QD) Bushing Sprockets
Engineered for efficiency in maintenance-critical environments. The QD system enables rapid sprocket changes without disturbing the shaft or adjacent components, significantly reducing downtime during service or chain replacement.Split-Tapered Bushing Sprockets
Designed for robust performance in high-torque applications. The split bushing assembly provides exceptional clamping force and concentricity, ensuring reliable power transmission under heavy loads and minimizing the risk of shaft damage.Taper-Lock Bushing Sprockets
A versatile and widely adopted solution for general industrial use. The precision-tapered interface creates a firm, secure fit on the shaft, offering excellent resistance to loosening under variable loads and reversing conditions for both inch and metric series chains.Specifications & Compliance of Bushing-bore Sprockets
- Materials: High-grade steel with hardened teeth
- Standards: DIN 8187, ISO 606
- Pitch Options: 0.375", 0.5", 0.625", 0.75", 9.53mm, 12.7mm, 15.88mm, 19.05mm, 25.4mm
- Tooth Count: 12-25, 26, 28, 30, 32, 36, 38, 40, 45, 48, 60
- Hub Diameters: 2.5"-4.375" (46mm-90.47mm)
Applications
Bushing-bore sprockets serve critical roles in conveyor systems, material handling equipment, agricultural machinery, and industrial drive systems where reliable power transmission and easy maintenance are essential.Contact us for bushing-bore sprockets that match your specific chain specifications and operational requirements. Our technical team can help select the optimal configuration for your application needs.
