Linear Bearing Housings
22 Products

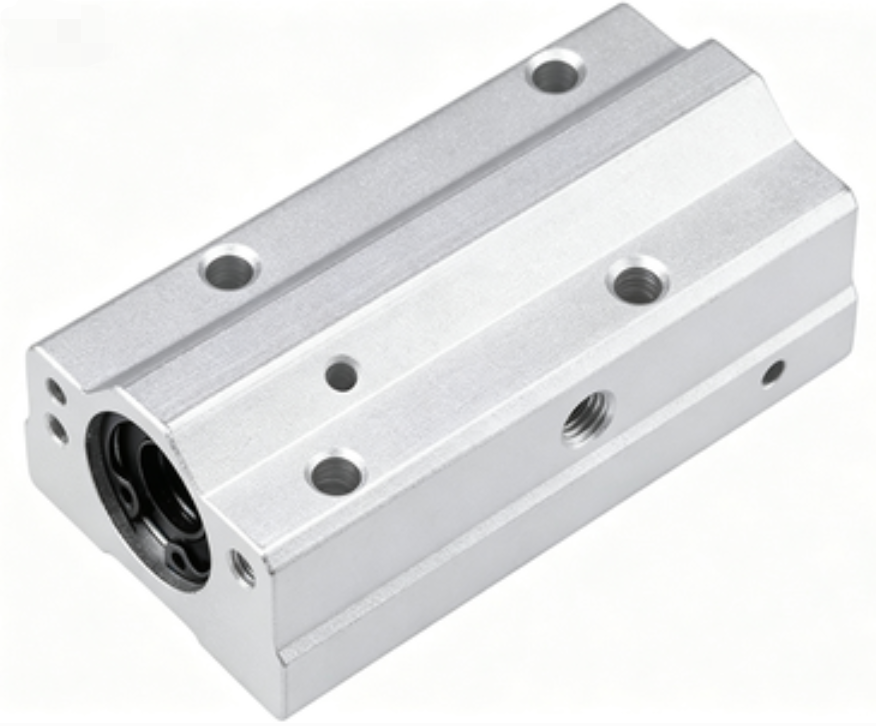

Common Linear Bearing Housings
Slide up to two linear ball or sleeve bearings into these housings and secure them with the included internal retaining rings.
Part Number
Bore Dia
Overall Length
Overall Width
Overall Height
>
Part Number
Bore Dia
Overall Length
Overall Width
Overall Height
>
JIAEKB
0.5"
1.187500"
1.625000"
0.812500"
JIAEKC
0.625000"
1.312500"
1.75"
0.937500"
JIAEKGB
0.875000"
0.166667"
2"
1.25"
JIAEKD
0.875000"
1.687500"
2"
1.25"
JIAEKE
1.125000"
1.937500"
2.5"
1.625000"
JIAEKGC
1.125000"
4"
2.5"
1.625000"
JIAEKF
1.25"
2.062500"
2.75"
1.75"
JIAEKGD
1.25"
4.5"
2.75"
1.75"
JIAEKGH
1.563000"
0.406250"
3.25"
2.187500"
JIAEKGE
1.563000"
6"
3.25"
2.187500"
JIAEKGI
2"
0.208333"
4"
0.406250"
JIAEKGJ
2.375000"
4"
0.187500"
3.25"
Flange-Mounted Linear Bearing Housings
Slide up to two linear ball or sleeve bearings into these housings and secure them with the included internal retaining rings.
Part Number
Bore Dia
Overall Length
Overall Width
Overall Height
Flange Thickness
Outer Dia
>
Part Number
Bore Dia
Overall Length
Overall Width
Overall Height
Flange Thickness
Outer Dia
>
JHDEKBB
0.625000"
1.312500"
1.25"
1.25"
0.187500"
0.875000"
JHDEKBC
0.875000"
1.687500"
1.625000"
1.625000"
0.25"
1.25"
JHDEKBI
0.875000"
0.125000"
1.625000"
1.625000"
0.25"
1.25"
JHDEKBD
1.125000"
1.937500"
2"
2"
0.25"
1.5"
JHDEKBE
1.25"
2.062500"
0.187500"
0.187500"
0.375000"
1.75"
JHDEKBJ
1.25"
4.187500"
0.187500"
0.187500"
0.375000"
1.75"
JHDEKBF
1.563000"
0.406250"
2.75"
2.75"
0.5"
2.25"
JHDEKC
1.563000"
5.625000"
2.75"
2.75"
0.5"
2.25"
JHDEKBG
2"
0.208333"
3"
3"
0.5"
2.5"
JHDEKBH
2.375000"
4"
4"
4"
0.75"
0.208333"
