727 ACD/P4A

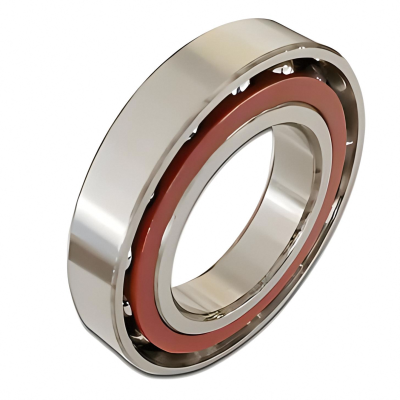

727 ACD/P4A Open Type With Steel Balls (Super Precision)
727 ACD/P4A Open Type With Steel Balls (Super Precision)
Price $ 104.36
Part Number 727 ACD/P4A
Equivalent to Manufacturer SKF
System of Measurement Metric
Bearing Type Ball
Internal Design High Capacity
Contact Angle 25°
Lubrication Hole NO
For Load Direction Combined Radial and Thrust
Construction Single Row
Seal Type Open
Bore Dia 7 mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia 22 mm
Outer Dia Tolerance -0.005mm to 0
Width 7 mm
Width Tolerance -0.2mm to 0
Shoulder Diameter Inner Ring (Large Side Face)(d1) 12.6 mm
Shoulder Diameter Inner Ring (Small Side Face)(d2) 12.6 mm
Shoulder Diameter Outer Ring (Large Side Face)(D1) 17.4 mm
Chamfer Dimension (r1 2)(min) 0.3 mm
Chamfer Dimension (r3 4)(min) 0.2 mm
Distance Pressure Point (a) 7.1 mm
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Cotton fabric reinforced phenolic resin
Dynamic Radial Load 2.91 kN
Static Radial Load 1.12 kN
Max Speed (X1000 rpm) 110
Lubrication Lubricated
Temperature Range -30° to 110 °C
ABEC Rating P4 (ABEC-7)
ROHS Compliant
REACH Compliant
Ball Dia 3.969 mm
Ball Qty 9
Weight 0.013 kg
