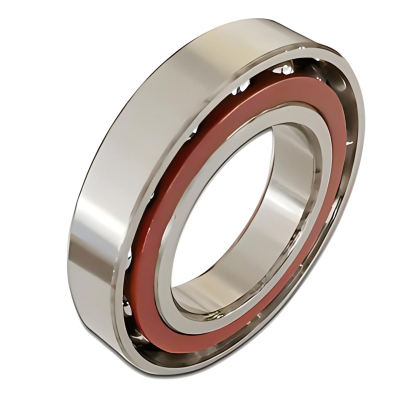

71924 ACE/P4A
Price $ 1682.74
Number
| Part Number | 71924 ACE/P4A |
| Equivalent to Manufacturer | SKF |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Internal Design | High Speed |
| Contact Angle | 25° |
| Lubrication Hole | NO |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Seal Type | Open |
| Bore Dia | 120 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 165 mm |
| Outer Dia Tolerance | -0.01mm to 0 |
| Width | 22 mm |
| Width Tolerance | -0.2mm to 0 |
| Shoulder Diameter Inner Ring (Large Side Face)(d1) | 134 mm |
| Shoulder Diameter Inner Ring (Small Side Face)(d2) | 130.2 mm |
| Shoulder Diameter Outer Ring (Large Side Face)(D1) | 151.01 mm |
| Chamfer Dimension (r1 2)(min) | 1.1 mm |
| Chamfer Dimension (r3 4)(min) | 0.6 mm |
| Distance Pressure Point (a) | 44.3 mm |
| Ring Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | Cotton fabric reinforced phenolic resin |
| Dynamic Radial Load | 44.9 kN |
| Static Radial Load | 38 kN |
| Max Speed (X1000 rpm) | 15 |
| Lubrication | Lubricated |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | P4 (ABEC-7) |
| ROHS | Compliant |
| REACH | Compliant |
| Ball Dia | 14.288 mm |
| Ball Qty | 24 |
| Weight | 1.1 kg |
})
