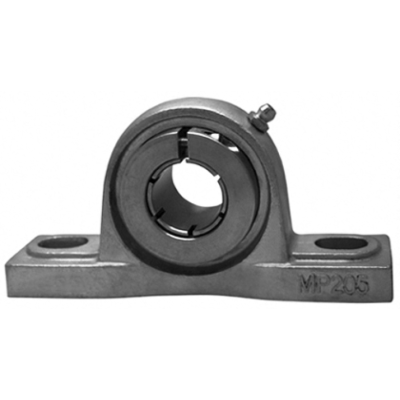

UEMP204-12MZ20
Price $ 42.62
| Part Number | UEMP204-12MZ20 |
Brand: LILY  | |
Equivalent: AMI |
| System of Measurement | Inch |
| Bearing Part Number | UE204-12MZ20 |
| Housing Part Number | MP204 |
| Product Series | UEMP200MZ20 |
| Bearing Type | Ball Bearing |
| Mounted Type | Pillow Block Bearing |
| Inner Ring Type | Wide Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Eccentric Collar Locking |
| Lubrication Fitting Tap | 1/4 28 UNF |
| Bore Dia | 3/4" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Mounting Bolt Size | 3/8" |
| Center Height | 1 5/16" |
| Whole Height | 2 9/16" |
| Whole Length | 5" |
| Hole Ctr-to-Ctr Min | 3 3/8" |
| Hole Ctr-to-Ctr Max | 4 1/8" |
| Pillow Height | 19/32" |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Stainless Steel |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.86 lb |
| c | 1 1/2" |
| n | 3/4" |
| s | 1/2" |
| U | 1.299" |
