SG060CP0

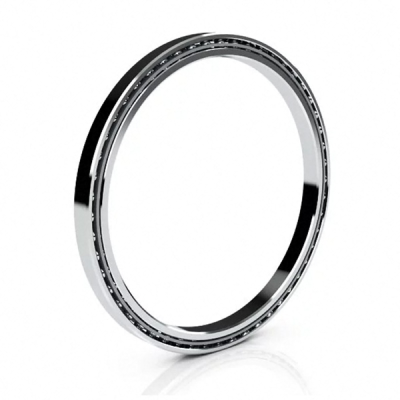

SG060CP0 Thin Section Bearings
Price $ 931.19
Part Number SG060CP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial Contact
Construction Single Row
Seal Type Open
Series SG 1" x 1"
Bore Dia 6"
Bore Dia Tolerance -0.0010"– 0"
Outer Dia 8"
Outer Dia Tolerance -0.0010"– 0"
Width 1"
Width Tolerance +.000 –.005"
Land dia.L1 6.742"
Land dia.L2 7.258"
Ring Material 440C Stainless Steel
Ball Material 440C Stainless Steel
Cage Material Brass
Dynamic Radial Load 7241 lbs
Static Radial Load 11490 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 5.1 lbs
SG060CP0 Thin Section Bearings cad drawing

Request a Quote

*
*
INTERCHANGE
The LILY bearing part series SG060CP0 is a potential replacement for these common bearing part numbers.
LILY
Kaydon
LSG060CP0
SG060CP0
