SD100CP0

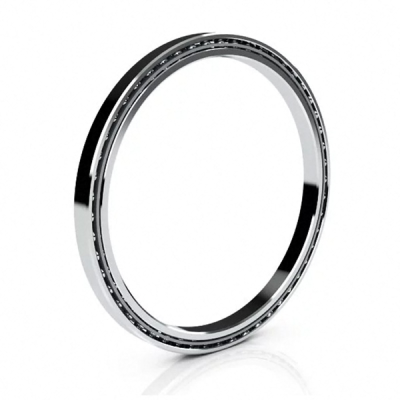

SD100CP0 Thin Section Bearings
Price $ 1008.58
Part Number SD100CP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial Contact
Construction Single Row
Seal Type Open
Series SD 1/2" x 1/2"
Bore Dia 10"
Bore Dia Tolerance -0.0014"– 0"
Outer Dia 11"
Outer Dia Tolerance -0.0014"– 0"
Width 0.5"
Width Tolerance +.000 –.005"
Land dia.L1 10.370"
Land dia.L2 10.630"
Ring Material 440C Stainless Steel
Ball Material 440C Stainless Steel
Cage Material Brass
Dynamic Radial Load 2847 lbs
Static Radial Load 7180 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 1.88 lbs
SD100CP0 Thin Section Bearings cad drawing

Request a Quote

*
*
INTERCHANGE
The LILY bearing part series SD100CP0 is a potential replacement for these common bearing part numbers.
LILY
KAYDON
RBC
LSD100CP0
SD100CP0
SD100CP0*RBC

SD100CP0 thin section bearings can offer super running accuracy. SD100CP0 bore dia is 10". Its out dia is 11". SD100CP0 ball material is 440C Stainless Steel. Its seal type is Open. The SD100CP0 thin section bearings are available in a w1167e range and they are often for use in applications with demanding specifications.

Typical applications include:

Precision robotic joints, Semiconductor equipment and measuring systems, adar and microwave equipment, Solar array panels, Gu1167ance systems, Medical Imaging equipment, Machine Tools, Textile Machinery, Material Handling, Satellite Systems, Antenna Equipment, Packaging Machinery, Aerospace, Scanning Equipment, Optical Equipment, otary Joints, Manufacturing Equipment, Military Turrets, Slip ing Assemblies, Harmonic Drives, Speed educers, etc.

General Selection Factors

Several factors must be cons1167ered for choosing thin section bearings. These factors include the ring material, the design, the shields and seals, the cage, Annual Bearing Engineering Committee (ABEC) grade, radial play and lubricant, etc.
