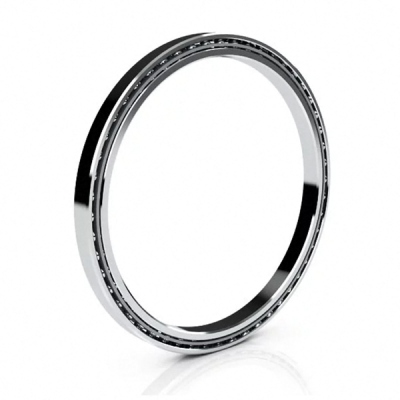

SB050AR0 Thin Section Bearings

LILY Interchangeable From Kaydon
SB050AR0 Thin Section Bearings
Price $ 655.47
Part Number SB050AR0
LILY Part No. LSB050AR0
System of Measurement Inch
Bearing Type Ball
For Load Direction Angular Contact
Construction Single Row
Seal Type Open
Series SB 5/16" x 5/16"
Bore Dia 5"
Bore Dia Tolerance -0.0010"– 0"
Outer Dia 5.625"
Outer Dia Tolerance -0.0008"– 0"
Width 0.3125"
Width Tolerance +.000 –.005"
Land dia.L1 5.231"
Land dia.L2 5.393"
C'Bore dia.L3 5.460"
Ring Material 440C Stainless Steel
Ball Material Aisi440c Stainless Steel
Cage Material Brass
Dynamic Radial Load 976 lbs
ISO radial 2,081 Ibs
Static Radial Load 2500 lbs
Static Thrust 2410 lbs
Static Moment 7210 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 0.37 lbs
For Shaft Diameter 5.000"
For Housing pid 5.625"
Contact Angle 30°
Radial 2500
1  ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
SB050AR0 Thin Section Bearings cad drawing
