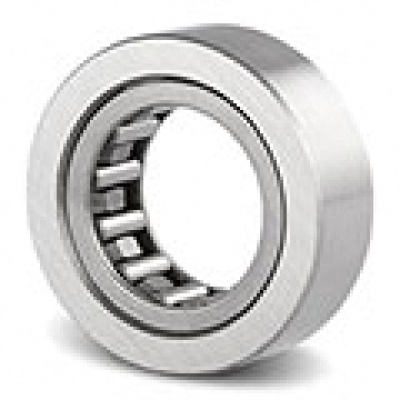

RSTO35
$25.80
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | RSTO35 |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
| System of Measurement | Metric |
| Fw | 42 mm |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Caged Needle Roller |
| Type | Yoke Type |
| Seal Type | Unsealed |
| Roller Material | Bearing Steel |
| Roller Dia | 72 mm |
| Roller Width | 19.8 mm |
| Yoke Bore Dia | 42 mm |
| Inner Dia of Outer Ring | 50 mm |
| R | 500 mm |
| rmin | 0.6 mm |
| Max Speed | 1100 rpm |
| Static Radial Load | 41000 N |
| Dynamic Radial Load | 25000 N |
| Fatigue Load Limit Radial | 5500 N |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight (g) | 375 |
