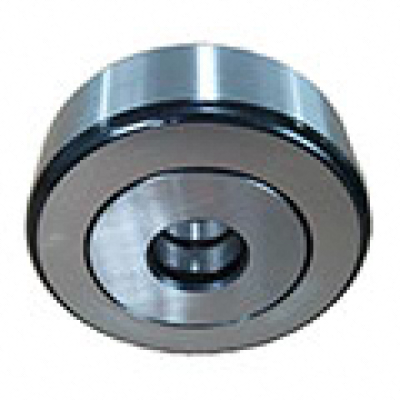

NNTR50x130x65-2ZL
Part Number | NNTR50x130x65-2ZL |
Brand: LILY | |
Equivalent: Schaeffler (INA) |
System of Measurement | Metric |
D1 | 80 mm |
d3 | 3 mm |
For Load Direction | Radial |
Roller Shape | Crowned |
Internal Construction | Double Row |
Type | Yoke Type |
Seal Type | Unsealed |
Roller Material | Bearing Steel |
Roller Dia | 130 mm |
Roller Width | 63 mm |
Yoke Bore Dia | 50 mm |
Overall Width | 65 mm |
Shoulder Dia | 63 mm |
R | 10000 mm |
rmin | 3 mm |
r1 min | 2 mm |
Max Speed | 1100 1/min |
Dynamic Radial Load | 193000 N |
Temperature Range | -20 to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight (g) | 5200 |
