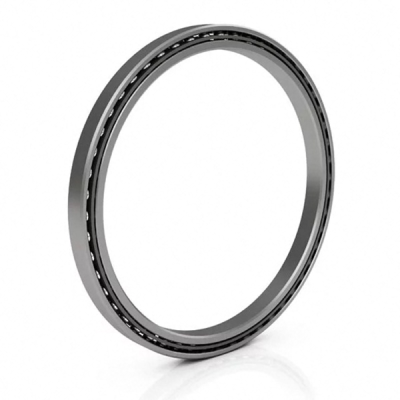

NG220AR0 Thin Section Bearings

LILY Interchangeable From Kaydon
NG220AR0 Thin Section Bearings
Price $ 7995.75
Part Number NG220AR0
LILY Part No. LNG220AR0
System of Measurement Inch
Bearing Type Ball
For Load Direction Angular Contact
Construction Single Row
Seal Type Open
Series NG 1" x 1"
Bore Dia 21.9998"
Bore Dia Tolerance -0.0018"– 0"
Outer Dia 24.0003"
Outer Dia Tolerance -0.0018"– 0"
Width 1"
Width Tolerance +.000 –.010"
Land dia.L1 22.742"
Land dia.L2 23.258"
C'Bore dia.L3 23.468"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic Radial Load 14290 lbs
ISO radial 18,351 Ibs
Static Radial Load 43598 lbs
Static Thrust 37712 lbs
Static Moment 125856 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 16.63 lbs
For Shaft Diameter 21.9998"
For Housing pid 24.0003"
Contact Angle 30°
Radial 43598
Surface Chromium Plating
1  ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
