NF180CP0

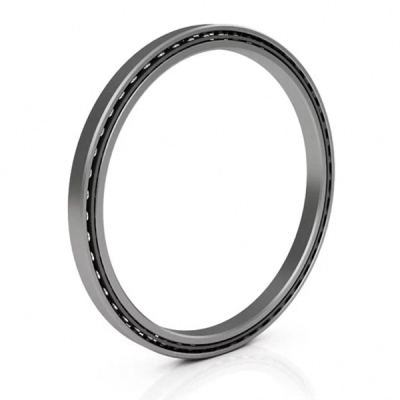

NF180CP0 Endura-kote Plated Bearings
NF180CP0 Endura-kote Plated Bearings
Price $ 4067.64
Part Number NF180CP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial Contact
Construction Single Row
Surface Chromium Plating
Seal Type Open
Series NF 3/4" x 3/4"
Bore Dia 17.9998"
Bore Dia Tolerance -0.0018"– 0"
Outer Dia 19.5003"
Outer Dia Tolerance -0.0018"– 0"
Width 0.75"
Width Tolerance +.000 –.010"
External Diameter On Inner Ring 18.555"
Internal Diameter On Outer Ring 18.945"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Brass
Dynamic Radial Load 7557 lbs
ISO radial 1 10744 Ibs
Static Radial Load 21160 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 7.9 lbs
1  ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
NF180CP0 Endura-kote Plated Bearings cad drawing

Request a Quote

*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NF180CP0 is a potential replacement for these common bearing part numbers.
LILY
KAYDON
RBC
LNF180CP0
NF180CP0
NF180CP0*RBC

NF180CP0 Endura-kote Plated Thin Section Bearings can offer super running accuracy. NF180CP0 bore dia is 17.9998". Its out dia is 19.5003". NF180CP0 ball material is 52100 Chrome Steel. Its seal type is Open. The NF180CP0 Endura-kote Plated Thin Section Bearings are available in a wide range and they are often for use in applications with demanding specifications. More
