NF055XP0

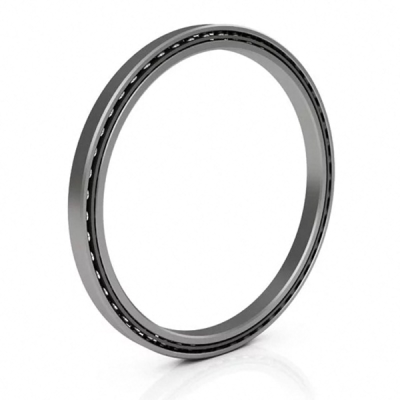

NF055XP0 Thin Section Bearings
Price $ 687.18
Part Number NF055XP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Surface Chromium Plating
Seal Type Open
Series NF 3/4" x 3/4"
Bore Dia 5.4998"
Bore Dia Tolerance -0.0010"– 0"
Outer Dia 7.0003"
Outer Dia Tolerance -0.0010"– 0"
Width 0.75"
Width Tolerance +.000 –.005"
Land dia.L1 6.055"
Land dia.L2 6.445"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Brass
Dynamic Radial Load 5415 lbs
Dynamic Thrust 8200 lbs
Dynamic Moment 12696 lbs
Static Radial Load 7050 lbs
Static Thrust 17630 lbs
Static Moment 22040 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 2.5 lbs
NF055XP0 Thin Section Bearings cad drawing

Request a Quote

*
*
INTERCHANGE
The LILY bearing part series NF055XP0 is a potential replacement for these common bearing part numbers.
LILY
Kaydon
LNF055XP0
NF055XP0
