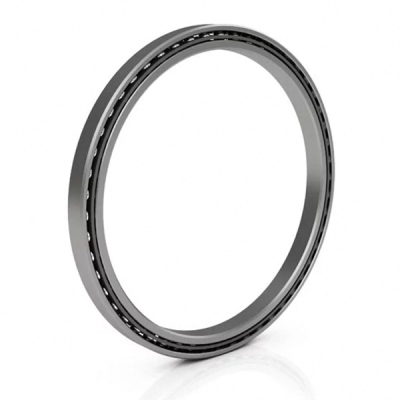

NF042CP0 Thin Section Bearings

LILY Interchangeable From Kaydon
NF042CP0 Thin Section Bearings
Price $ 577.94
Part Number NF042CP0
LILY Part No. LNF042CP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial Contact
Construction Single Row
Seal Type Open
Series NF 3/4" x 3/4"
Bore Dia 4.2498"
Bore Dia Tolerance -0.0008"– 0"
Outer Dia 5.7503"
Outer Dia Tolerance -0.0008"– 0"
Width 0.75"
Width Tolerance +.000 –.005"
Land dia.L1 4.805"
Land dia.L2 5.195"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic Radial Load 3655 lbs
ISO radial 6,472 Ibs
Static Radial Load 5640 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 2.0 lbs
For Shaft Diameter 4.2498"
For Housing pid 5.7503"
Surface Chromium Plating
1  ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
NF042CP0 Thin Section Bearings cad drawing
