NF040XP0

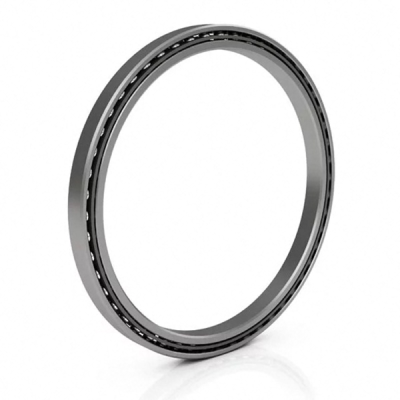

NF040XP0 Endura-kote Plated Bearings
NF040XP0 Endura-kote Plated Bearings
Price $ 481.62
Part Number NF040XP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Surface Chromium Plating
Seal Type Open
Series NF 3/4" x 3/4"
Bore Dia 3.9998"
Bore Dia Tolerance -0.0008"– 0"
Outer Dia 5.5003"
Outer Dia Tolerance -0.0006"– 0"
Width 0.75"
Width Tolerance +.000 –.005"
External Diameter On Inner Ring 4.555"
Internal Diameter On Outer Ring 4.945"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Brass
Dynamic Radial Load 4665 lbs
Dynamic Thrust 6830 lbs
Dynamic Moment 8312 lbs
Static Radial Load 5360 lbs
Static Thrust 13400 lbs
Static Moment 12730 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 1.9 lbs
Moment Load Rating 8 ft-lbs
NF040XP0 Endura-kote Plated Bearings cad drawing

Request a Quote

*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NF040XP0 is a potential replacement for these common bearing part numbers.
LILY
KAYDON
RBC
LNF040XP0
NF040XP0
NF040XP0*RBC

NF040XP0 Endura-kote Plated Thin Section Bearings can offer super running accuracy. NF040XP0 bore dia is 3.9998". Its out dia is 5.5003". NF040XP0 ball material is 52100 Chrome Steel. Its seal type is Open. The NF040XP0 Endura-kote Plated Thin Section Bearings are available in a wide range and they are often for use in applications with demanding specifications. More
