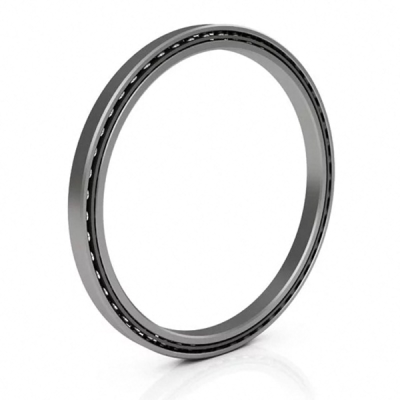

NC055CP0 Endura-kote Plated Bearings
NC055CP0 Endura-kote Plated Bearings
Price $ 552.10
Part Number NC055CP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial Contact
Construction Single Row
Surface Chromium Plating
Seal Type Open
Series NC 3/8" x 3/8"
Bore Dia 5.4998"
Bore Dia Tolerance -0.0010"– 0"
Outer Dia 6.2503"
Outer Dia Tolerance -0.0010"– 0"
Width 0.375"
Width Tolerance +.000 –.005"
External Diameter On Inner Ring 5.777"
Internal Diameter On Outer Ring 5.973"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Brass
Dynamic Radial Load 1274 lbs
ISO radial 1 2594 Ibs
Static Radial Load 2830 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 0.59 lbs
1  ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
NC055CP0 Endura-kote Plated Bearings cad drawing

Request a Quote

Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
The LILY bearing part series NC055CP0 is a potential replacement for these common bearing part numbers.

NC055CP0 Endura-kote Plated Thin Section Bearings can offer super running accuracy. NC055CP0 bore dia is 5.4998". Its out dia is 6.2503". NC055CP0 ball material is 52100 Chrome Steel. Its seal type is Open. The NC055CP0 Endura-kote Plated Thin Section Bearings are available in a wide range and they are often for use in applications with demanding specifications. More
