NB110CP0 Thin Section Bearings

LILY Interchangeable From Kaydon

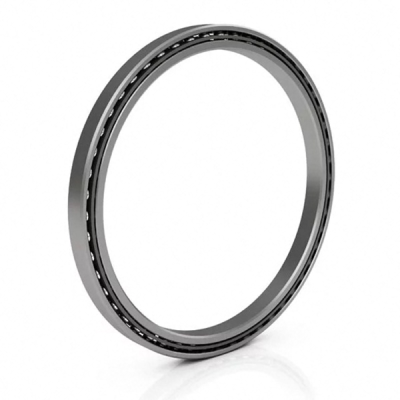

NB110CP0 Thin Section Bearings
Price $ 1452.27
Part Number NB110CP0
LILY Part No. LNB110CP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial Contact
Construction Single Row
Seal Type Open
Series NB 5/16" x 5/16"
Bore Dia 10.9998"
Bore Dia Tolerance -0.0014"– 0"
Outer Dia 11.6253"
Outer Dia Tolerance -0.0014"– 0"
Width 0.3125"
Width Tolerance +.000 –.005"
Land dia.L1 11.231"
Land dia.L2 11.393"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic Radial Load 1464 lbs
ISO radial 2,615 Ibs
Static Radial Load 4590 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 0.75 lbs
For Shaft Diameter 10.9998"
For Housing pid 11.6253"
Surface Chromium Plating
1  ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
NB110CP0 Thin Section Bearings cad drawing
