NB045CP0

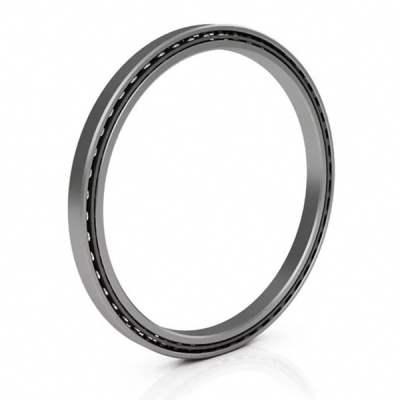

NB045CP0 Thin Section Bearings
Price $ 473.21
Part Number NB045CP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial Contact
Construction Single Row
Surface Chromium Plating
Seal Type Open
Series NB 5/16" x 5/16"
Bore Dia 4.4998"
Bore Dia Tolerance -0.0008"– 0"
Outer Dia 5.1253"
Outer Dia Tolerance -0.0008"– 0"
Width 0.3125"
Width Tolerance +.000 –.005"
Land dia.L1 4.731"
Land dia.L2 4.893"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Brass
Dynamic Radial Load 880 lbs
ISO radial1 1904 Ibs
Static Radial Load 1950 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 0.33 lbs
1  ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
NB045CP0 Thin Section Bearings cad drawing

Request a Quote

*
*
INTERCHANGE
The LILY bearing part series NB045CP0 is a potential replacement for these common bearing part numbers.
LILY
Kaydon
LNB045CP0
NB045CP0
