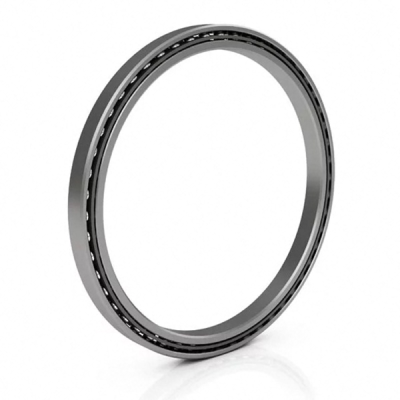

NA075XP0 Endura-kote Plated Bearings
NA075XP0 Endura-kote Plated Bearings
Price $ 635.45
Part Number NA075XP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Surface Chromium Plating
Seal Type Open
Series NA 1/4" x 1/4"
Bore Dia 7.4998"
Bore Dia Tolerance -0.0012"– 0"
Outer Dia 8.0003"
Outer Dia Tolerance -0.0012"– 0"
Width 0.25"
Width Tolerance +.000 –.005"
External Diameter On Inner Ring 7.686"
Internal Diameter On Outer Ring 7.814"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Brass
Dynamic Radial Load 1089 lbs
Dynamic Thrust 1810 lbs
Dynamic Moment 3165 lbs
Static Radial Load 2350 lbs
Static Thrust 5880 lbs
Static Moment 9120 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 0.34 lbs
Moment Load Rating 3 ft-lbs
NA075XP0 Endura-kote Plated Bearings cad drawing

Request a Quote

*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NA075XP0 is a potential replacement for these common bearing part numbers.
LILY
KAYDON
RBC
LNA075XP0
NA075XP0
NA075XP0*RBC

NA075XP0 Endura-kote Plated Thin Section Bearings can offer super running accuracy. NA075XP0 bore dia is 7.4998". Its out dia is 8.0003". NA075XP0 ball material is 52100 Chrome Steel. Its seal type is Open. The NA075XP0 Endura-kote Plated Thin Section Bearings are available in a wide range and they are often for use in applications with demanding specifications. More
