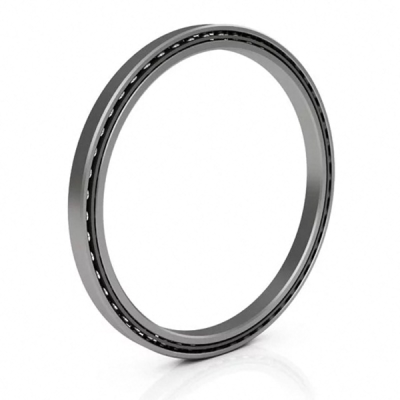

NA060XP0 Thin Section Bearings

LILY Interchangeable From Kaydon
NA060XP0 Thin Section Bearings
Price $ 539.41
Part Number NA060XP0
LILY Part No. LNA060XP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Surface Chromium Plating
Seal Type Open
Series NA 1/4" x 1/4"
Bore Dia 5.9998"
Bore Dia Tolerance -0.0010"– 0"
Outer Dia 6.5003"
Outer Dia Tolerance -0.0010"– 0"
Width 0.25"
Width Tolerance +.000 –.005"
Land dia.L1 6.186"
Land dia.L2 6.314"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic Radial Load 955 lbs
Dynamic Thrust 1570 lbs
Dynamic Moment 2240 lbs
Static Radial Load 1900 lbs
Static Thrust 4740 lbs
Static Moment 5930 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 0.28 lbs
NA060XP0 Thin Section Bearings cad drawing
