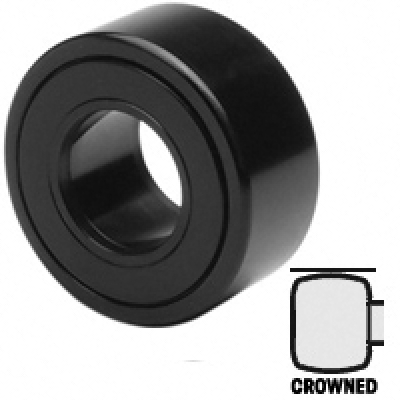

MYRV-35
| Part Number | MYRV-35 |
Brand: LILY  | |
Equivalent: SMITH |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Full Complement |
| Type | Yoke Type |
| Seal Type | Unsealed |
| Series | Metric Yoke Type Industrial Cam Followers |
| Roller Material | Bearing Steel |
| Roller Dia | 72 mm |
| Roller Width | 28 mm |
| Yoke Bore Dia | 35 mm |
| Overall Width | 29 mm |
| Shoulder Dia | 58 |
| Radius | 1.10 |
| Max Speed (rpm) | 1400 rpm |
| Static Radial Load | 28575 lbs |
| Dynamic Radial Load | 11925 lbs |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.647 kg |
})
