MUTD-1747-D

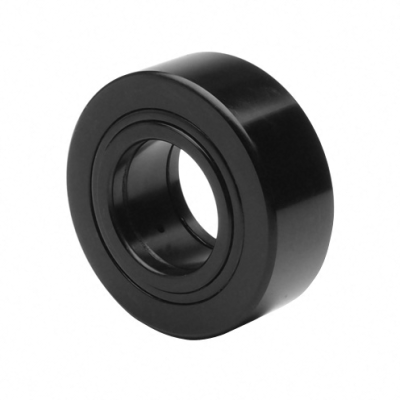

MUTD-1747-D Yoke Style Metric Cam Followers
Part Number MUTD-1747-D
Brand: LILY
|
Equivalent: SMITH
System of Measurement Metric
For Load Direction Radial
Roller Shape Crowned
Internal Construction Double Row
Type Yoke Type
Seal Type Shielded
Series Metric Yoke Type Industrial Cam Followers
Roller Material Bearing Steel
Roller Dia 47 mm
Roller Width 20 mm
Yoke Bore Dia 17 mm
Overall Width 21 mm
Radius 1
Max Speed (rpm) 5500 rpm
Static Radial Load 6.975 lbs
Dynamic Radial Load 5580 lbs
RoHS Compliant
REACH Compliant
Weight 0.22 kg
