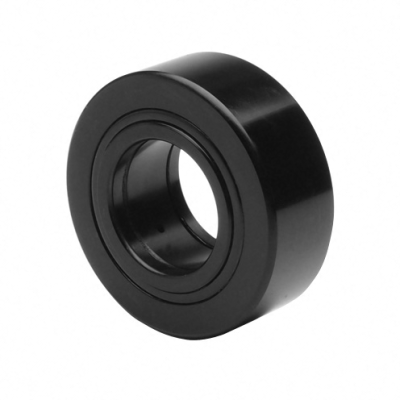

MUTD-15-SD
| Part Number | MUTD-15-SD |
Brand: LILY  | |
Equivalent: SMITH |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Double Row |
| Type | Yoke Type |
| Seal Type | Sealed |
| Series | Metric Yoke Type Industrial Cam Followers |
| Roller Material | Bearing Steel |
| Roller Dia | 35 mm |
| Roller Width | 18 mm |
| Yoke Bore Dia | 15 mm |
| Overall Width | 19 mm |
| Radius | 0.6 |
| Max Speed (rpm) | 6500 rpm |
| Static Radial Load | 6.075 lbs |
| Dynamic Radial Load | 5175 lbs |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.099 kg |
})
