KD180AR0

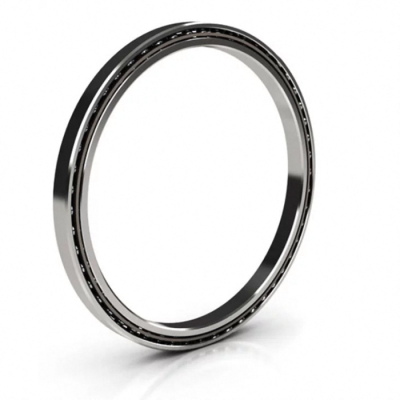

KD180AR0 Constant Section (CS) Bearings
Price $ 1324.74
Number
Part Number KD180AR0
Brand: LILY
|
Equivalent: KAYDON
System of Measurement Inch
Bearing Type Ball
For Load Direction Angular Contact
Contact Angle 30°
Construction Single Row
Seal Type Open
Thin Section Bearings Type RealiSlim Open Bearings
Series KD 1/2" x 1/2"
Bore Dia 18"
Bore Dia Tolerance -0.0016"– 0"
Outer Dia 19"
Outer Dia Tolerance -0.0016"– 0"
Width 0.5"
Width Tolerance +.000 –.010"
External Diameter On Inner Ring 18.370"
Internal Diameter On Outer Ring 18.630"
External Diameter On Outer Ring 18.712"
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Brass
Dynamic Radial Load 4113 lbf
ISO radial 1 6276 Ibs
Static Radial Load 14610 lbf
Static Thrust 10930 lbs
Static Moment 42180 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 3.29 lbs
1 ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
Download Pdf

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series KD180AR0 is a potential replacement for these common bearing part numbers.
LILY
KAYDON
RBC
INA
SSB
SILVER
NSK
LKD180AR0
KD180AR0
KD180AR0*RBC
CSED180
RD180AR0
SD180AR0
-

Design Features of KD180AR0 Bearing

KD180AR0 Bearing represents a specialized category of thin section bearings. It is distinguished by its unique cross-sectional geometry, which remains constant as the bore diameter increases. KD180AR0 bore dia is 18". Its out dia is 19". Its width is 0.5". It is manufactured to high precision standards, which is critical for applications requiring accurate and smooth motion.



What Benefits Can KD180AR0 Bearing Provide?

  • Space-Saving Design: The constant, slim cross-section makes this bearing ideal for compact designs where space is limited.
  • Lightweight: Its design reduces material usage, thus lowering the weight, which is crucial in aerospace and other weight-sensitive applications.
  • Load Handling Capabilities: Despite its thin section, this bearing can handle a significant amount of radial, axial, and moment loads, making it versatile in various mechanical setups.
  • Low Friction: It maintains low friction, which enhances the overall efficiency of the applications in which it is used.



What Can KD180AR0 Bearing Be Used for?

KD180AR0 Bearing is suitable for applications such as:

  • Industrial Machinery: Used in equipment where space-saving bearings are required without compromising on load capacity.
  • Aerospace Industry: In components where uniform cross-sections are essential for design integrity while maintaining weight and space efficiency.
  • Robotics and Automation: Its precision and compact size make it well-suited for robotic and automated machinery.
  • Medical Equipment: In devices where precision and compact design are crucial, like in advanced imaging equipment.
