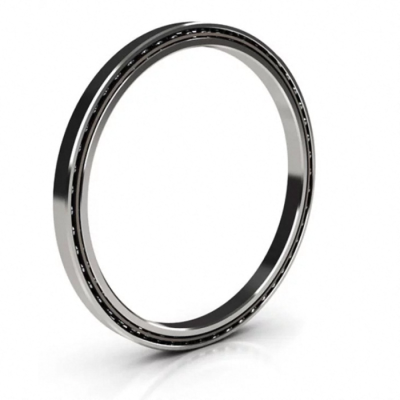

KD060XP0
Price $ 140.42
| Part Number | KD060XP0 |
| Equivalent to Manufacturer | KAYDON Bearings |
| System of Measurement | Inch |
| Bearing Type | Ball |
| For Load Direction | Four Point Contact |
| Construction | Single Row |
| Seal Type | Open |
| Thin Section Bearings Type | RealiSlim Open Bearings |
| Series | KD 1/2" x 1/2" |
| Bore Dia | 6" |
| Bore Dia Tolerance | -0.0010"– 0" |
| Outer Dia | 7" |
| Outer Dia Tolerance | -0.0010"– 0" |
| Width | 0.5" |
| Width Tolerance | +.000 –.005" |
| External Diameter On Inner Ring | 6.370" |
| Internal Diameter On Outer Ring | 6.630" |
| Ring Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | Brass |
| Dynamic Radial Load | 2855 lbs |
| Dynamic Thrust | 4490 lbs |
| Dynamic Moment | 6961 lbs |
| Static Radial Load | 4450 lbs |
| Static Thrust | 11120 lbs |
| Static Moment | 14450 lbs |
| Moment Load Rating | 6 ft-lbs |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30°C to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight | 1.16 lbs |
})
INTERCHANGE
The LILY bearing part series KD060XP0 is a potential replacement for these common bearing part numbers.
LILY
KAYDON
RBC
INA
NSK
SSB
SILVER
LKD060XP0
KD060XP0
KD060XP0*RBC
CSXD060
NBX15212
RD060XP0
SD060XP0
