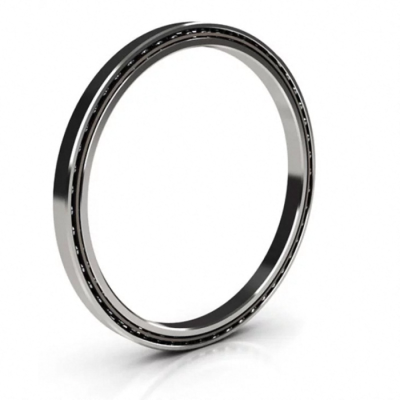

KB100AR0
Price $ 234.03
Number
Part Number | KB100AR0 |
Brand: LILY | |
Equivalent: KAYDON |
System of Measurement | Inch |
Bearing Type | Ball |
For Load Direction | Angular Contact |
Contact Angle | 30° |
Construction | Single Row |
Seal Type | Open |
Thin Section Bearings Type | RealiSlim Open Bearings |
Series | KB 5/16" x 5/16" |
Bore Dia | 10" |
Bore Dia Tolerance | -0.0014"– 0" |
Outer Dia | 10.625" |
Outer Dia Tolerance | -0.0014"– 0" |
Width | 0.3125" |
Width Tolerance | +.000 –.005" |
External Diameter On Inner Ring | 10.231" |
Internal Diameter On Outer Ring | 10.393" |
External Diameter On Outer Ring | 10.449" |
Ring Material | Chrome Steel |
Ball Material | Chrome Steel |
Cage Material | Brass |
Dynamic Radial Load | 1461 lbf |
ISO radial 1 | 2673 Ibs |
Static Radial Load | 4890 lbf |
Static Thrust | 3760 lbs |
Static Moment | 14120 lbs |
Lubrication | Lubricated |
Shaft Mount Type | Press Fit |
Temperature Range | -30°C to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | 0.0000 – 0.0005" |
RoHS | Compliant |
Weight | 0.71 lbs |
1 ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
INTERCHANGE
The LILY bearing part series KB100AR0 is a potential replacement for these common bearing part numbers.
LILY
KAYDON
RBC
INA
SSB
SILVER
NSK
LKB100AR0
KB100AR0
KB100AR0*RBC
CSEB100
RB100AR0
SB100AR0
-
Design Features of KB100AR0 Bearing
KB100AR0 Bearing represents a specialized category of thin section bearings. It is distinguished by its unique cross-sectional geometry, which remains constant as the bore diameter increases. KB100AR0 bore dia is 10". Its out dia is 10.625". Its width is 0.3125". It is manufactured to high precision standards, which is critical for applications requiring accurate and smooth motion.
What Benefits Can KB100AR0 Bearing Provide?
- Space-Saving Design: The constant, slim cross-section makes this bearing ideal for compact designs where space is limited.
- Lightweight: Its design reduces material usage, thus lowering the weight, which is crucial in aerospace and other weight-sensitive applications.
- Load Handling Capabilities: Despite its thin section, this bearing can handle a significant amount of radial, axial, and moment loads, making it versatile in various mechanical setups.
- Low Friction: It maintains low friction, which enhances the overall efficiency of the applications in which it is used.
What Can KB100AR0 Bearing Be Used for?
KB100AR0 Bearing is suitable for applications such as:
- Industrial Machinery: Used in equipment where space-saving bearings are required without compromising on load capacity.
- Aerospace Industry: In components where uniform cross-sections are essential for design integrity while maintaining weight and space efficiency.
- Robotics and Automation: Its precision and compact size make it well-suited for robotic and automated machinery.
- Medical Equipment: In devices where precision and compact design are crucial, like in advanced imaging equipment.
