JU055CP0

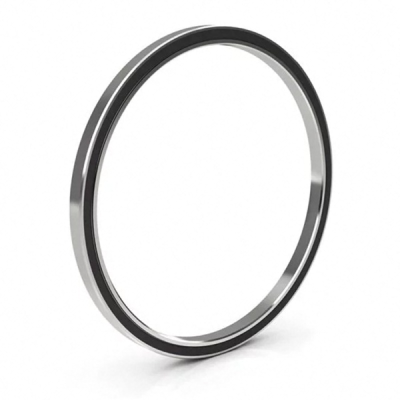

JU055CP0 RealiSlim Sealed Bearings
JU055CP0 RealiSlim Sealed Bearings
Price $ 513.19
Part Number JU055CP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial Contact
Construction Single Row
Seal Type Sealed
Series JU 1/2" x 3/8"
Bore Dia 5.5"
Bore Dia Tolerance -0.0010"– 0"
Outer Dia 6.25"
Outer Dia Tolerance -0.0010"– 0"
Width 0.5"
Width Tolerance +.000 –.005"
External Diameter On Inner Ring 5.650"
Internal Diameter On Outer Ring 6.042"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Brass
Dynamic Radial Load 1274 lbs
ISO radial 1 2594 Ibs
Static Radial Load 2830 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 0.74 lbs
1  ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
JU055CP0 RealiSlim Sealed Bearings cad drawing

Request a Quote

*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series JU055CP0 is a potential replacement for these common bearing part numbers.
LILY
KAYDON
RBC
SSB
SILVER
LJU055CP0
JU055CP0
JU055CP0*RBC
RJU055CP0
JSU055CP0

JU055CP0 RealiSlim Sealed Thin Section Bearings can offer super running accuracy. JU055CP0 bore dia is 5.5". Its out dia is 6.25". JU055CP0 ball material is 52100 Chrome Steel. Its seal type is Sealed. The JU055CP0 RealiSlim Sealed Thin Section Bearings are available in a wide range and they are often for use in applications with demanding specifications. More
