JG300XP0 Thin Section Bearings

LILY Interchangeable From Kaydon

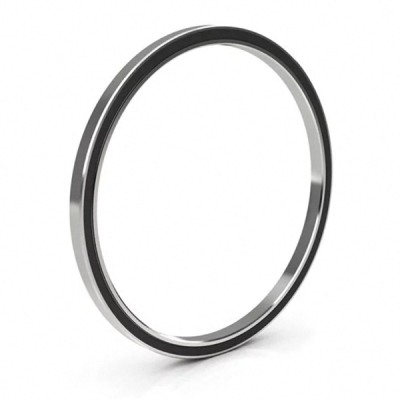

JG300XP0 Thin Section Bearings
Price $ 5533.55
Part Number JG300XP0
LILY Part No. LJG300XP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Seal Type Sealed
Series JG 1" x 1"
Bore Dia 30"
Bore Dia Tolerance -0.0018"- 0"
Outer Dia 32"
Outer Dia Tolerance -0.0018"- 0"
Width 1"
Width Tolerance +.000 –.010"
Land dia.L1 30.554"
Land dia.L2 31.602"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic Radial Load 21200 lbs
Dynamic Thrust 37980 lbs
Dynamic Moment 246541 lbs
Static Radial Load 50890 lbs
Static Thrust 127200 lbs
Static Moment 788800 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 23.3 lbs
JG300XP0 Thin Section Bearings cad drawing
