JG140CP0 Thin Section Bearings

LILY Interchangeable From Kaydon

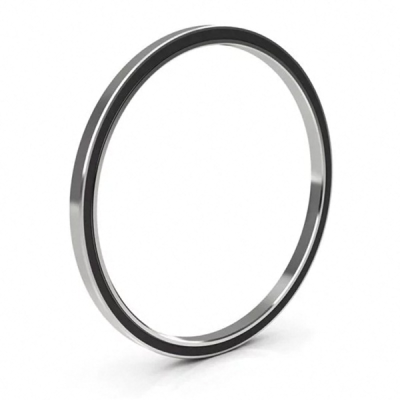

JG140CP0 Thin Section Bearings
Price $ 2119.87
Part Number JG140CP0
LILY Part No. LJG140CP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial Contact
Construction Single Row
Seal Type Sealed
Series JG 1" x 1"
Bore Dia 14"
Bore Dia Tolerance -0
Outer Dia 16"
Outer Dia Tolerance -0
Width 1"
Width Tolerance +.000 –.010"
Land dia.L1 14.554
Land dia.L2 15.602"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic Radial Load 10886 lbs
ISO radial 14,916 Ibs
Static Radial Load 24620 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 10.8 lbs
For Shaft Diameter 14.000"
For Housing pid 16.000"
1  ISO Radial ratings are calculated per ISO 281:1990. They are included for comparison only.
JG140CP0 Thin Section Bearings cad drawing
