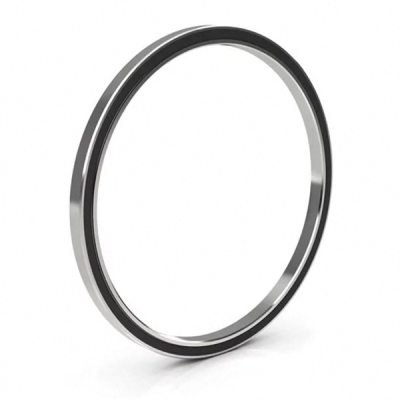

JG100XP0 Thin Section Bearings

LILY Interchangeable From Kaydon
JG100XP0 Thin Section Bearings
Price $ 1291.10
Part Number JG100XP0
LILY Part No. LJG100XP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Seal Type Sealed
Series JG 1" x 1"
Bore Dia 10"
Bore Dia Tolerance -0
Outer Dia 12"
Outer Dia Tolerance -0
Width 1"
Width Tolerance +.000 –.005"
Land dia.L1 10.554"
Land dia.L2 11.602"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic Radial Load 12147 lbs
Dynamic Thrust 19040 lbs
Dynamic Moment 50124 lbs
Static Radial Load 18060 lbs
Static Thrust 45140 lbs
Static Moment 99320 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 7.9 lbs
For Shaft Diameter 10.000"
For Housing pid 12.000"
Moment 50
JG100XP0 Thin Section Bearings cad drawing
