JG070XP0 Thin Section Bearings

LILY Interchangeable From Kaydon

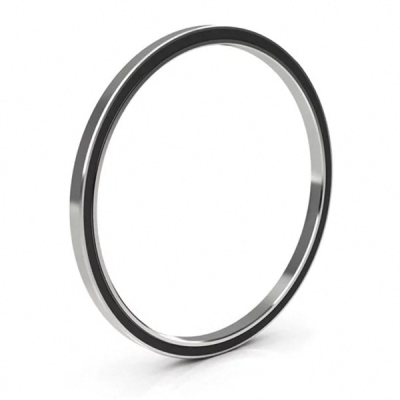

JG070XP0 Thin Section Bearings
Price $ 1024.34
Part Number JG070XP0
LILY Part No. LJG070XP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Seal Type Sealed
Series JG 1" x 1"
Bore Dia 7"
Bore Dia Tolerance -0
Outer Dia 9"
Outer Dia Tolerance -0
Width 1"
Width Tolerance +.000 –.005"
Land dia.L1 7.554"
Land dia.L2 8.602"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic Radial Load 10208 lbs
Dynamic Thrust 15400 lbs
Dynamic Moment 30636 lbs
Static Radial Load 13130 lbs
Static Thrust 32830 lbs
Static Moment 52530 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 5.8 lbs
JG070XP0 Thin Section Bearings cad drawing
