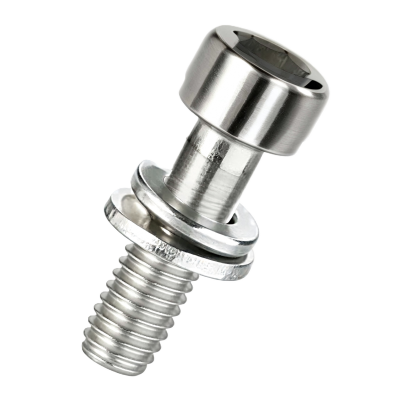

Stainless Steel Socket Head Screws with Split Lock Washer
/
JEJBCABBA
JEJBCABBA
94912A110
$1.21
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
| Part Number | JEJBCABBA |
| System of Measurement | Inch |
| Thread Size | 6-32 |
| Length | 0.5" |
| Threading | Fully Threaded |
| Thread Spacing | Coarse |
| Head Diameter | 0.226000" |
| Head Height | 0.138000" |
| Drive Size | 7/64" |
| Screw Size Decimal Equivalent | 0.138000" |
| Thread Type | UNC |
| Thread Fit | Class 3A |
| Head Type | Socket |
| Socket Head Profile | Standard |
| Screw Features | With Washer |
| Drive Style | Hex |
| Thread Direction | Right Hand |
| Locking Type | Lock Washer |
| Washer Type | Split Lock |
| Washer Material | 18-8 Stainless Steel |
| Washer OD | 0.204000" |
| Washer Thickness | 0.04" |
| Material | 18-8 Stainless Steel |
| Hardness | Rockwell B70 |
| Tensile Strength | 70000 psi |
| Specifications Met | ASTM F837 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| Internal Code | 12 |
INTERCHANGE
The LILY Bearing part series JEJBCABBA is a potential replacement for these common bearing part numbers.
LILY
JEJBCABBA
