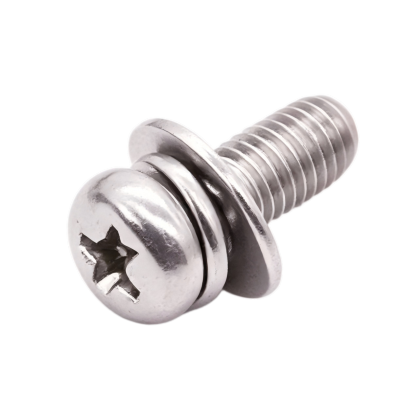

90317A179
Per Pack of 5
Bulk orders will be discounted, please contact our sales for a bulk quote.We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | JADBHABHJ |
| System of Measurement | Metric |
| Thread Size | M4 |
| Thread Pitch | 0.7 mm |
| Length | 25 mm |
| Threading | Fully Threaded |
| Head Diameter | 8 mm |
| Head Height | 3.1 mm |
| Washer OD | 8.58 mm |
| Washer Thickness | 0.6 mm |
| Drive Style | Phillips |
| Drive Size | No. 2 |
| Thread Type | Metric |
| Thread Spacing | Coarse |
| Thread Fit | Class 6g |
| Thread Direction | Right Hand |
| Head Type | Rounded |
| Rounded Head Style | Pan |
| Rounded Head Profile | Standard |
| Screw Features | With Washer |
| Locking Type | Lock Washer |
| Washer Finish | Passivated |
| Washer Material | 410 Stainless Steel |
| Washer Type | Internal-Tooth Lock |
| Material | 18-8 Stainless Steel |
| Finish | Passivated |
| Hardness | Rockwell B70 |
| Tensile Strength | 70000 psi |
| Specifications Met | ASME B18.13.1M |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| Internal Code | 57 |
