JA075XP0 Thin Section Bearings

LILY Interchangeable From Kaydon

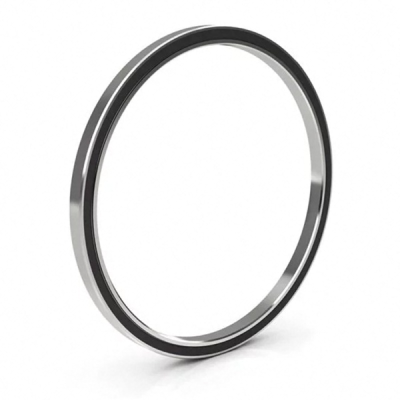

JA075XP0 Thin Section Bearings
Price $ 1026.79
Part Number JA075XP0
LILY Part No. LJA075XP0
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Seal Type Sealed
Series JA 1/4" x 1/4"
Bore Dia 7.5"
Bore Dia Tolerance -0.0012"– 0"
Outer Dia 8"
Outer Dia Tolerance -0.0012"– 0"
Width 0.25"
Width Tolerance +.000 –.005"
Land dia.L1 7.648"
Land dia.L2 7.856"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic Radial Load 1089 lbs
Dynamic Thrust 1810 lbs
Dynamic Moment 3165 lbs
Static Radial Load 2350 lbs
Static Thrust 5880 lbs
Static Moment 9120 lbs
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30°C to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight 0.34 lbs
For Shaft Diameter 7.500"
For Housing pid 8.000"
Moment 3
JA075XP0 Thin Section Bearings cad drawing
