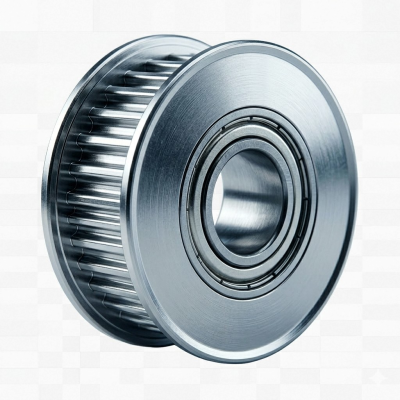

7769N32
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | HHGJNDC |
| System of Measurement | Metric |
| OD | 164 mm |
| Material | Iron |
| Overall Width | 110 mm |
| Bore Type | Plain |
| Bearing Type | Needle Roller |
| Mount Type | Press Fit |
| Diameter | 148.72 mm |
| Press Fit Type | With Hub |
| Outside Width | 110 mm |
| Inside Width | 68 mm |
| For Maximum Belt Width | 68 mm |
| For Belt Trade Size | GT2 |
| For Shaft Diameter | 50 mm |
| Hub Diameter | 123.95 mm |
| Number Of Flanges | 2 |
| Number Of Teeth | 34 |
| Teeth Shape | Trapezoidal |
| Ro Hs | RoHS 3 (2015/863/EU) Compliant |
| Fabrication | Machined |
| Pitch | 14 mm |
| Pitch Diameter | 151.51 mm |
| Usmca Qualifying | No |
| REACH | REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant |
| ECCN | EAR99 |
| DFARS | Specialty Metals COTS-Exempt |
| Schedule b | 848350.808 |
| Country of Origin | China |
| Heat Treatment | Tooth Surface Induction Hardening |
| Gear Hardness | 45-55HRC |
| Gear Accuracy | ANSI-2 AGMA-11 |
| Application Field | Mechanical transmission in chemical, textile machinery, food processing, instrumentation, petroleum and other industries, etc. |
