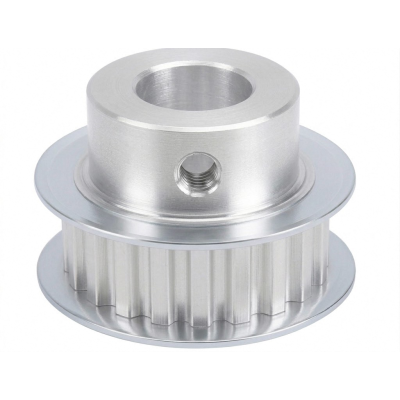

6495K24
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | GEJFKCE |
| System of Measurement | Inch |
| OD | 1.672000" |
| Material | Steel |
| Overall Width | 1.25" |
| Bore Type | Finished |
| Mount Type | Press Fit |
| Outside Width | 0.75" |
| Inside Width | 0.563000" |
| For Maximum Belt Width | 0.5" |
| For Belt Trade Size | L |
| For Shaft Diameter | 0.375000" |
| Hub Diameter | 1.063000" |
| Number Of Flanges | 2 |
| Number Of Teeth | 12 |
| Teeth Shape | Trapezoidal |
| Ro Hs | RoHS 3 (2015/863/EU) Compliant |
| Fabrication | Sintered |
| Pitch | 0.375000" |
| Pitch Diameter | 1.432000" |
| Includes | Set Screw |
| Usmca Qualifying | No |
| REACH | Not Compliant |
| ECCN | EAR99 |
| DFARS | Specialty Metals COTS-Exempt |
| Schedule b | 848350.803 |
| Country of Origin | China |
| Heat Treatment | Tooth Surface Induction Hardening |
| Gear Hardness | 45-55HRC |
| Gear Accuracy | ANSI-2 AGMA-11 |
| Application Field | Mechanical transmission in chemical, textile machinery, food processing, instrumentation, petroleum and other industries, etc. |
