DS100ATB18H
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | DS100ATB18H |
Brand: LILY  |
Interchangeable With: Martin |
Characteristics |
|
| System of Measurement | Inch |
| Number Of Teeth | 18 |
| For Roller Chain Trade Size | 100 |
| Type | A |
| Bushing Size | 3020 |
Dimensions |
|
| Pitch Diameter | 7.198" |
| OD | 7.84" |
| Bore Max | 0.9375" |
| Chain Pitch | 1.25" |
| Dimensions C | 2.6875" |
| Dimensions E | 2" |
| Dimensions W | 2" |
| Dimensions L1 | 3" |
| Dimensions L2 | 5.7969" |
Material |
|
| Material | Steel |
Properties |
|
| WT.lb(APPROX) Rim Only | 0.692 lbs |
| WT.lb(APPROX) Bushing Only | 16 lbs |

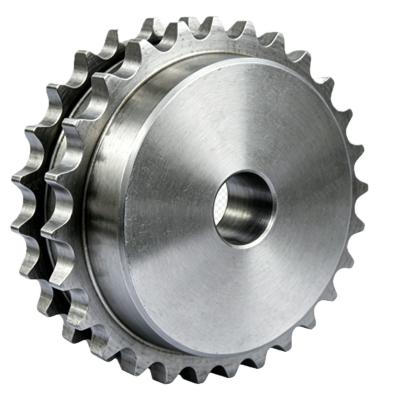

Design Features of DS100ATB18H Sprockets
DS100ATB18H has a 1.250-inch (31.75 mm) pitch and is designed for heavy-duty power transmission. It is manufactured to ANSI standards for compatibility with standard sprockets and industrial equipment, using high-strength, heat-treated steel for durability and wear resistance. Precisely machined rollers and bushings ensure smooth operation and reduced friction, making it suitable for heavy machinery, conveyors, and other demanding drive systems.
What Benefits Can DS100ATB18H Sprockets Provide?
- High Load Capacity: With a robust 1.250-inch pitch and heavy-duty design, it can handle substantial loads in demanding applications.
- Long Service Life: Heat-treated steel construction offers excellent durability and resistance to wear.
- Smooth and Efficient Operation: Precision-machined rollers and bushings minimize friction for consistent performance.
- Easy Compatibility: Built to ANSI standards for seamless integration with standard sprockets.
What Can DS100ATB18H Sprockets Be Used for?
- Heavy Machinery: Ideal for transmitting power in large-scale industrial machines.
- Conveyor Systems: Well-suited for heavy-duty conveyors requiring consistent and reliable motion.
- Agricultural Equipment: Used in robust farming machinery that operates under high load conditions.
- Construction Equipment: Applicable in equipment such as cranes, hoists, and other load-bearing systems.
