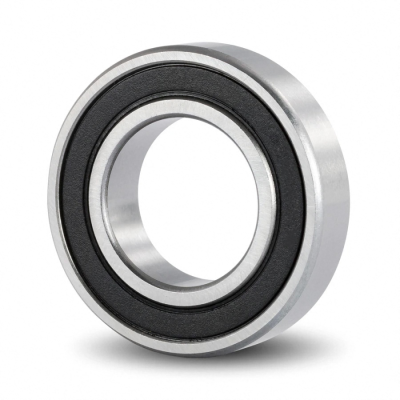

6902 2rs
$21.00
/Pack of 10
Per Pack of 10
Bulk orders will be discounted, please contact our sales for a bulk quote.We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | 6902 2rs |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Sealed |
| For Load Direction | Radial |
| Construction | Single Row |
| Tolerance Class | ABEC-1 |
Dimensions |
|
| Bore Dia | 15 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 28 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 7 mm |
| Width Tolerance | -0.120mm to 0 |
| Radial Clearance | 0.003mm to 0.018mm |
| Radial Clearance Trade No | C0 |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Stainless Steel |
Performance |
|
| Dynamic Radial Load | 974 lbf |
| Static Radial Load | 506 lbf |
| Max Speed (X1000 rpm) | 29 |
| Temperature Range | -30°C to 110 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 9 g |
