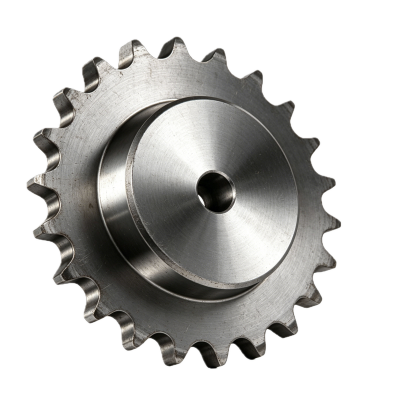

160R22H
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | 160R22H |
Brand: LILY  |
Interchangeable With: Martin |
Characteristics |
|
| System of Measurement | Inch |
| Number Of Teeth | 22 |
| For Roller Chain Trade Size | 160 |
| Type | 6 |
| Bushing Size | R2 |
Dimensions |
|
| Pitch Diameter | 14.053" |
| OD | 15.11" |
| Bore Max | 3.625" |
| Chain Pitch | 2" |
| Dimensions L | 4.875" |
| Dimensions P | 1.7188" |
| Dimensions C | 2" |
| Dimensions T | 1.156" |
| Dimensions OL | 5.1563" |
| Dimensions H | 5.375" |
Material |
|
| Material | Steel |
Properties |
|
| WT.lb(APPROX) With Hub | 71 lbs |
| WT.lb(APPROX) Rim Only | 60 lbs |
Design Features of 160R22H Sprockets
160R22H features a 2.000-inch (50.80 mm) pitch, designed for extremely high loads and demanding industrial applications. It is manufactured to ANSI standards for compatibility with standard sprockets and equipment, using heat-treated, high-grade steel for superior durability and wear resistance. Precision-machined rollers and bushings ensure smooth operation and reduced friction, making it ideal for reliable performance in harsh industrial environments.
What Benefits Can 160R22H Sprockets Provide?
- Exceptional Load Capacity: Designed to handle extremely heavy loads with its robust 2.000-inch pitch.
- Extended Service Life: Heat-treated, high-grade steel construction offers outstanding durability and resistance to wear.
- Smooth and Efficient Operation: Precision-machined rollers and bushings reduce friction for reliable and efficient performance.
- Easy Compatibility: Built to ANSI standards for seamless integration with standard sprockets and industrial equipment.
What Can 160R22H Sprockets Be Used for?
- Heavy Industrial Machinery: Ideal for transmitting power in large-scale equipment requiring high torque and strength.
- High-Capacity Conveyor Systems: Suitable for moving extremely heavy loads in manufacturing and material handling operations.
- Construction and Mining Equipment: Used in cranes, hoists, and other machinery operating under extreme loads.
- Agricultural Equipment: Applicable in robust farm machinery designed for tough working conditions.
