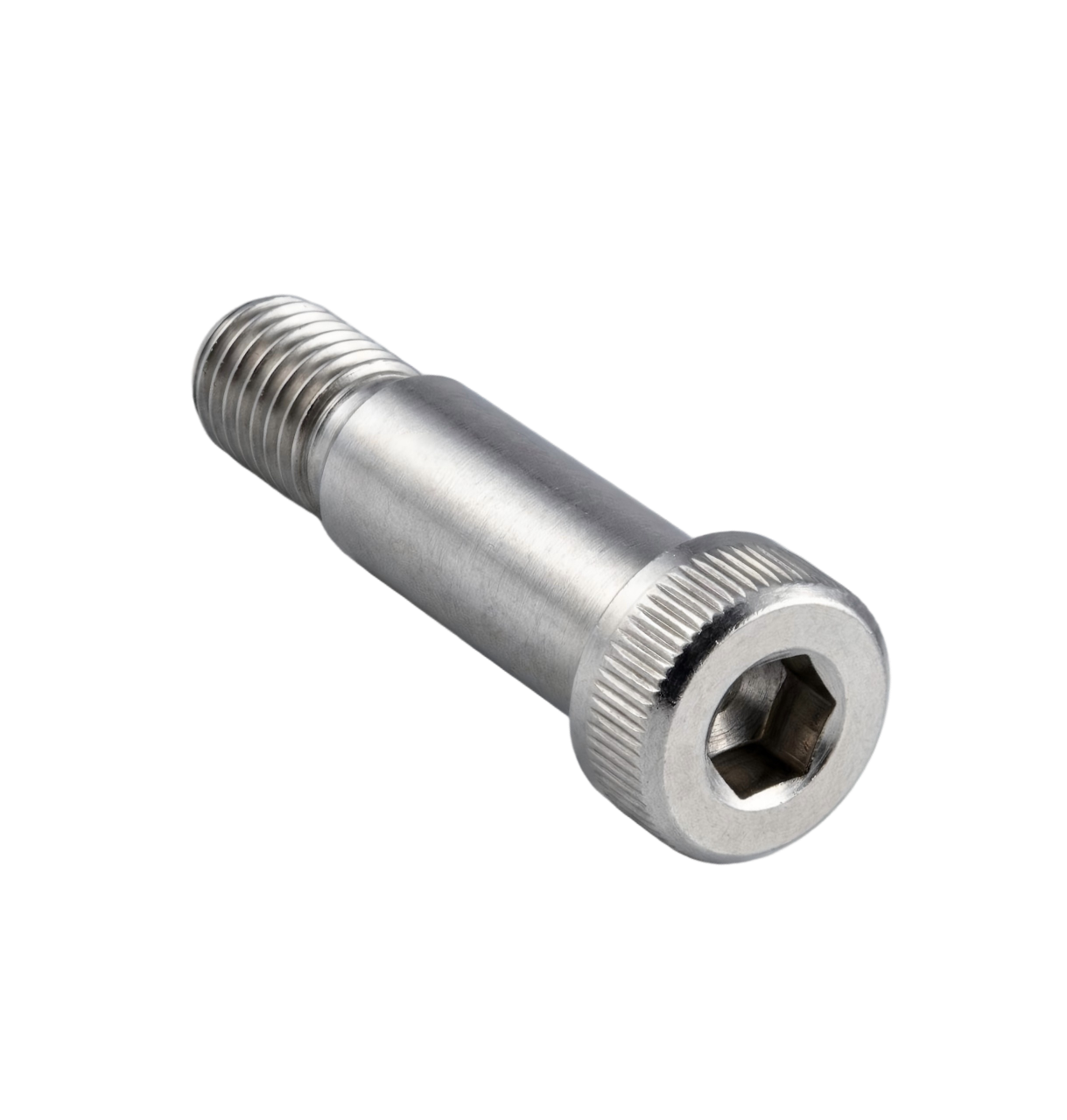

Metric Low-Profile Shoulder Screws
26 Products
Metric Low-Profile Shoulder Screws
These metric screws have a head height that's about two-thirds the head height of a standard shoulder screw. Use them in low-clearance applications such as inside machines.
Part Number
Thread
Size
Size
Shoulder
Length
Length
Thread
Length
Length
Head
Diameter
Diameter
Head
Height
Height
Minimum Shear
Strength
Strength
Drive Size
Material
Finish
Price
JAIDDABBB
M5
8 mm
10 mm
10 mm
3 mm
Not Rated
3 mm
Alloy Steel
Black Oxide
$ 3.21
JAIDDABBC
M5
10 mm
10 mm
10 mm
3 mm
Not Rated
3 mm
Alloy Steel
Black Oxide
$ 3.30
JAIDDABBD
M5
12 mm
10 mm
10 mm
3 mm
Not Rated
3 mm
Alloy Steel
Black Oxide
$ 3.38
JAIDDABBE
M5
16 mm
10 mm
10 mm
3 mm
Not Rated
3 mm
Alloy Steel
Black Oxide
$ 3.47
JAIDDABBF
M5
20 mm
10 mm
10 mm
3 mm
Not Rated
3 mm
Alloy Steel
Black Oxide
$ 3.57
JAIDDABBG
M5
25 mm
10 mm
10 mm
3 mm
Not Rated
3 mm
Alloy Steel
Black Oxide
$ 3.67
JAIDDABBH
M5
30 mm
10 mm
10 mm
3 mm
Not Rated
3 mm
Alloy Steel
Black Oxide
$ 3.84
JAIDDABBI
M6
6 mm
11 mm
13 mm
3.5 mm
Not Rated
4 mm
Alloy Steel
Black Oxide
$ 4.01
JAIDDABBJ
M6
8 mm
11 mm
13 mm
3.5 mm
Not Rated
4 mm
Alloy Steel
Black Oxide
$ 4.12
JAIDDABCB
M6
10 mm
11 mm
13 mm
3.5 mm
Not Rated
4 mm
Alloy Steel
Black Oxide
$ 4.20
JAIDDABCC
M6
12 mm
11 mm
13 mm
3.5 mm
Not Rated
4 mm
Alloy Steel
Black Oxide
$ 4.31
JAIDDABCD
M6
16 mm
11 mm
13 mm
3.5 mm
Not Rated
4 mm
Alloy Steel
Black Oxide
$ 4.42
JAIDDABCE
M6
20 mm
11 mm
13 mm
3.5 mm
Not Rated
4 mm
Alloy Steel
Black Oxide
$ 4.55
JAIDDABCF
M6
25 mm
11 mm
13 mm
3.5 mm
Not Rated
4 mm
Alloy Steel
Black Oxide
$ 4.66
JAIDDABCG
M6
30 mm
11 mm
13 mm
3.5 mm
Not Rated
4 mm
Alloy Steel
Black Oxide
$ 4.88
JAIDDABCH
M8
10 mm
13 mm
16 mm
4.5 mm
Not Rated
5 mm
Alloy Steel
Black Oxide
$ 5.56
JAIDDABCI
M8
12 mm
13 mm
16 mm
4.5 mm
Not Rated
5 mm
Alloy Steel
Black Oxide
$ 5.66
JAIDDABCJ
M8
16 mm
13 mm
16 mm
4.5 mm
Not Rated
5 mm
Alloy Steel
Black Oxide
$ 5.79
JAIDDABDB
M8
20 mm
13 mm
16 mm
4.5 mm
Not Rated
5 mm
Alloy Steel
Black Oxide
$ 5.92
JAIDDABDC
M8
25 mm
13 mm
16 mm
4.5 mm
Not Rated
5 mm
Alloy Steel
Black Oxide
$ 6.05
JAIDDABDD
M8
30 mm
13 mm
16 mm
4.5 mm
Not Rated
5 mm
Alloy Steel
Black Oxide
$ 6.26
JAIDDABDE
M10
12 mm
16 mm
18 mm
6 mm
Not Rated
6 mm
Alloy Steel
Black Oxide
$ 6.09
JAIDDABDF
M10
16 mm
16 mm
18 mm
6 mm
Not Rated
6 mm
Alloy Steel
Black Oxide
$ 6.20
JAIDDABDG
M10
20 mm
16 mm
18 mm
6 mm
Not Rated
6 mm
Alloy Steel
Black Oxide
$ 6.34
JAIDDABDH
M10
25 mm
16 mm
18 mm
6 mm
Not Rated
6 mm
Alloy Steel
Black Oxide
$ 6.46
JAIDDABDI
M10
30 mm
16 mm
18 mm
6 mm
Not Rated
6 mm
Alloy Steel
Black Oxide
$ 6.75
