SCHB-SCM-307

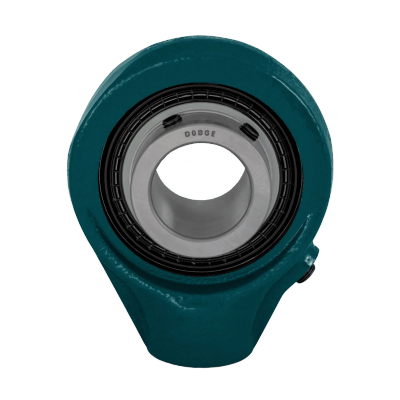

SCHB-SCM-307 Standard Duty
id 3775
Product Number SCHB-SCM-307
Part Number 053320
System of Measurement Inch
Anti Rotation Pin YES
Bearing Series 218 SERIES
Shaft Attachment SET SCREW
Retainer Type STD RETAINER
Manufacturing Plant Location Rogersville, TN
Expansion Type NON-EXPANSION
Grease Type GENERAL PURPOSE
Bearing Duty NORMAL DUTY
Ring Size STANDARD
Seal Type SINGLE-LIP CONTACT
Base to Center Height NOT APPLICABLE
Bearing Family SC MEDIUM DUTY
Flinger Material STEEL
Retainer Material NYLON
Ball Grade CLASS 10
UPC 782475946617
Bearing Inner Ring Material STEEL
Ship Weight 30.000 LB
CategoryNum 355
Ball Bearing Housing Series 218 SERIES
Housing Coating POWDER COAT
Shaft Size 3.4375 IN
Housing Material Ductile iron
End Cap Groove YES
Bearing Outer Ring Material STEEL
Flinger Type RUBBERIZED FLINGER
Housing Type SCREW CONVEYOR HANGER BEARING
Ball Material STEEL
Self Aligning SELF CENTERING
