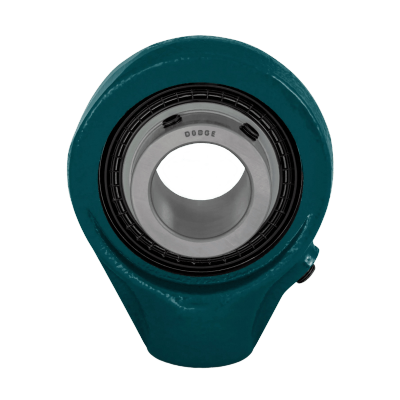

SCHB-SC-207-HT
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | SCHB-SC-207-HT |
| System of Measurement | Inch |
| Anti Rotation Pin | YES |
| Bearing Series | 212 SERIES |
| Shaft Attachment | SET SCREW |
| Retainer Type | MAX LIFE CAGE |
| Manufacturing Plant Location | Rogersville, TN |
| Expansion Type | NON-EXPANSION |
| Grease Type | HIGH TEMPERATURE |
| Bearing Duty | NORMAL DUTY |
| Ring Size | STANDARD |
| Seal Type | SHIELD |
| Base to Center Height | STANDARD |
| Bearing Family | SETSCREW BALL BEARING |
| Flinger Material | STEEL |
| Retainer Material | POLYMER |
| Ball Grade | CLASS 10 |
| UPC | 782476917043 |
| Bearing Inner Ring Material | STEEL |
| Ship Weight | 7.37 lb |
| CategoryNum | 355 |
| Ball Bearing Housing Series | 212 SERIES |
| Housing Coating | POWDER COAT |
| Shaft Size | 2.4375" |
| Housing Material | Ductile iron |
| End Cap Groove | NO |
| Bearing Outer Ring Material | STEEL |
| Flinger Type | STANDARD FLINGER |
| Housing Type | SCREW CONVEYOR HANGER BEARING |
| Ball Material | STEEL |
| Self Aligning | SELF CENTERING |
