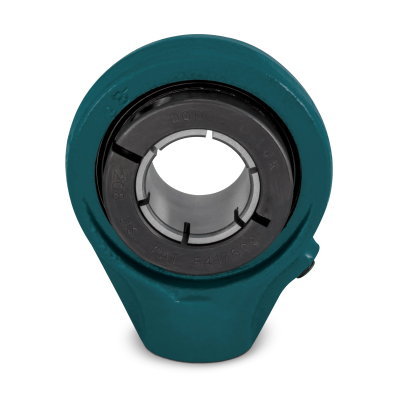

SCHB-DL-207
| Part Number | SCHB-DL-207 |
| System of Measurement | Inch |
| Anti Rotation Pin | YES |
| Bearing Series | 212 SERIES |
| Shaft Attachment | D-LOCK |
| Retainer Type | STD RETAINER |
| Manufacturing Plant Location | Rogersville, TN |
| Expansion Type | NON-EXPANSION |
| Grease Type | GENERAL PURPOSE |
| Bearing Duty | NORMAL DUTY |
| Ring Size | STANDARD |
| Seal Type | SINGLE-LIP CONTACT |
| Base to Center Height | STANDARD |
| Bearing Family | D-LOCK BALL BEARING |
| Flinger Material | STEEL |
| Retainer Material | NYLON |
| Ball Grade | CLASS 10 |
| UPC | 782475323333 |
| Bearing Inner Ring Material | STEEL |
| Ship Weight | 7.370 LB |
| CategoryNum | 356 |
| Ball Bearing Housing Series | 212 SERIES |
| Housing Coating | POWDER COAT |
| Shaft Size | 2.4375 IN |
| Housing Material | Ductile iron |
| End Cap Groove | NO |
| Bearing Outer Ring Material | STEEL |
| Flinger Type | RUBBERIZED FLINGER |
| Housing Type | SCREW CONVEYOR HANGER BEARING |
| Ball Material | STEEL |
| Self Aligning | SELF CENTERING |
