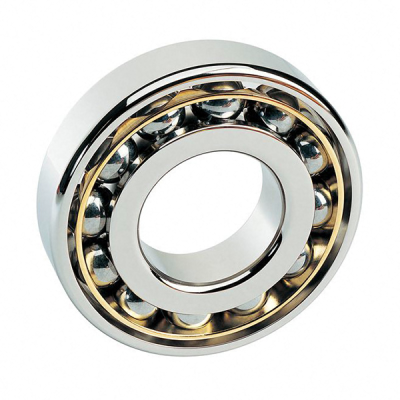

7308 BECBJ
| Part Number | 7308 BECBJ |
| Equivalent to Manufacturer | SKF |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Internal Design | High Speed |
| Contact Angle | 40° |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Seal Type | Open |
| Bore Dia | 40 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 90 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 23 mm |
| Width Tolerance | -0.05mm to 0 |
| Shoulder Diameter Inner Ring (Large Side Face)(d1) | 59.7 mm |
| Shoulder Diameter Inner Ring (Small Side Face)(d2) | 49.55 mm |
| Shoulder Diameter Outer Ring (Large Side Face)(D1) | 71.6 mm |
| Chamfer Dimension (r1 2)(min) | 1.5 mm |
| Distance Pressure Point (a) | 39 mm |
| Ring Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | Steel Cage |
| Dynamic Radial Load | 50 kN |
| Static Radial Load | 32.5 kN |
| Max Speed (X1000 rpm) | 10 |
| Lubrication | Lubricated |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | P6 (ABEC-3) |
| ROHS | Compliant |
| REACH | Compliant |
| Weight | 0.64 kg |
})
