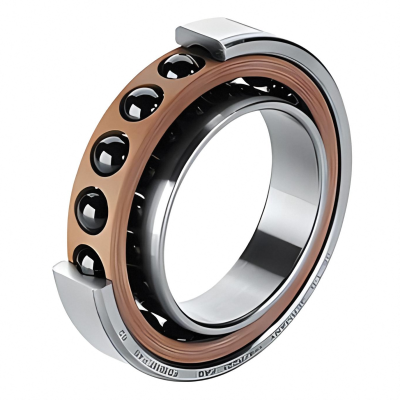

71801 ACD/HCP4DGA
71801 ACD/HCP4DGA
$297.30
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | 71801 ACD/HCP4DGA |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Seal Type | Open |
| For Load Direction | Angular Contact |
| Matched Arrangement | Universal matching |
| Universal Matching Bearing | Yes, back-to-back (<>), face-to-face (><) or tandem (>>) |
| Number of Bearings | 2 |
| Ball Qty | 14 |
| Tolerance Class | P4 |
Dimensions |
|
| Bore Dia | 12 mm |
| Bore Dia Tolerance | -0.004mm to 0 |
| Outer Dia | 21 mm |
| Outer Dia Tolerance | -0.004mm to 0 |
| Width | 10 mm |
| Width Tolerance | -0.2mm to 0 |
| Contact Angle | 25 ° |
| Ball Dia | 2.381 mm |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Ceramic |
| Cage Material | Phenolic |
Performance |
|
| Dynamic Radial Load | 3.19 kN |
| Static Radial Load | 2.24 kN |
| Max Speed (X1000 rpm) | 100 |
| Temperature Range | - 30°C to 110 °C |
Properties |
|
| Lubrication | Lubricated |
| Preload | Extra light / Class A |
| Weight | 0.012 kg |
